Flowmeters
AccessoriesMedist

Flowmeters

250 and 500 ml oxygen humidifiers and O2 and AIR quick connectors to AFNOR, BS, DIN and CZ standards for Medist flowmeters.

Price on requestQuote includes installation and training
Made to order
Request a quoteCall

Items in this group

8 items. Please quote the catalogue number in your inquiry, it speeds up the quote.

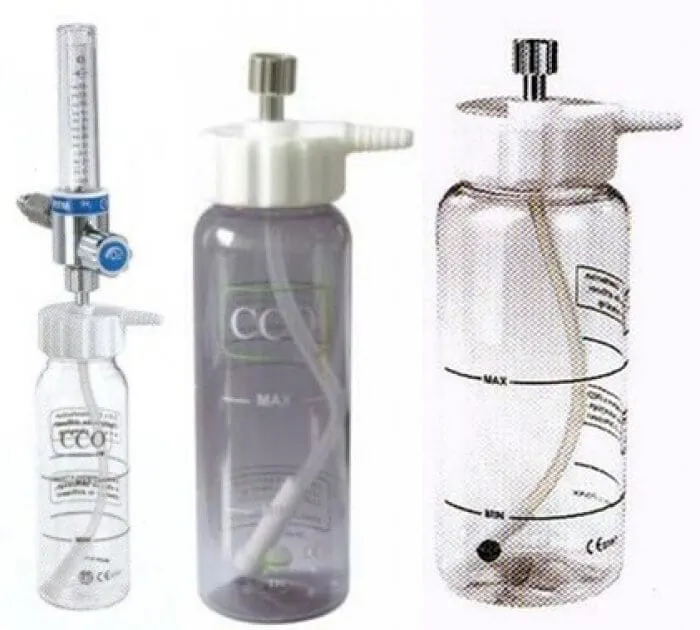

  • Humidifier – Flowmeters

    Humidifier

    • Humidifier 250 cc CCO – catalogue number 70105.26
    • Humidifier 500 cc TMS – catalogue number 70105.35
    • humidifies oxygen or medical air delivered to the patient via the respiratory tract
    • reusable, unbreakable and resistant to disinfectants
    • fitted with a porous diffuser, which ensures quiet operation and a high level of user comfort
    • CCO – 250 ml capacity, autoclavable at 134°C or suitable for cold sterilisation
    • TMS – 500 ml capacity, autoclavable at 134°C

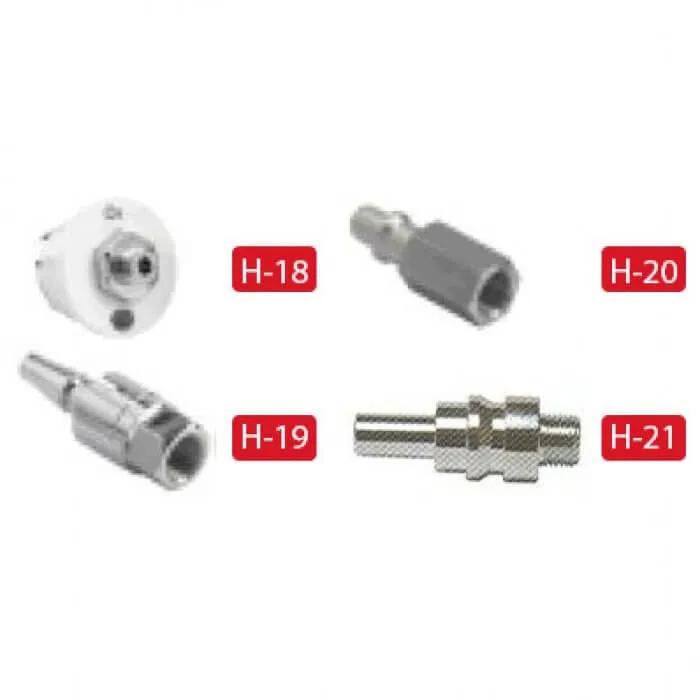

  • O2 quick coupler – Flowmeters

    O2 quick connector

    • French standard (AFNOR) H-18 – catalogue number 73500.64
    • British standard (BS) H-19 – catalogue number 73500.65
    • German standard (DIN) H-20 – catalogue number 73500.66
    • Czech standard (CZ) H-21 – catalogue number 70105.41

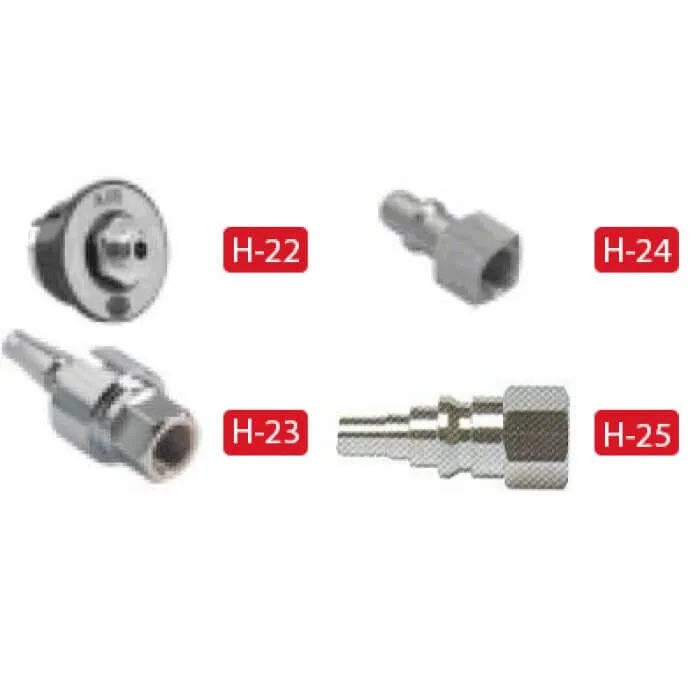

  • AIR quick coupler – Flowmeters

    AIR quick connector

    • French standard (AFNOR) H-22 – catalogue number 73500.69
    • British standard (BS) H-23 – catalogue number 73500.70
    • German standard (DIN) H-24 – catalogue number 73500.71
    • Czech standard (CZ) H-25 – catalogue number 25052.04

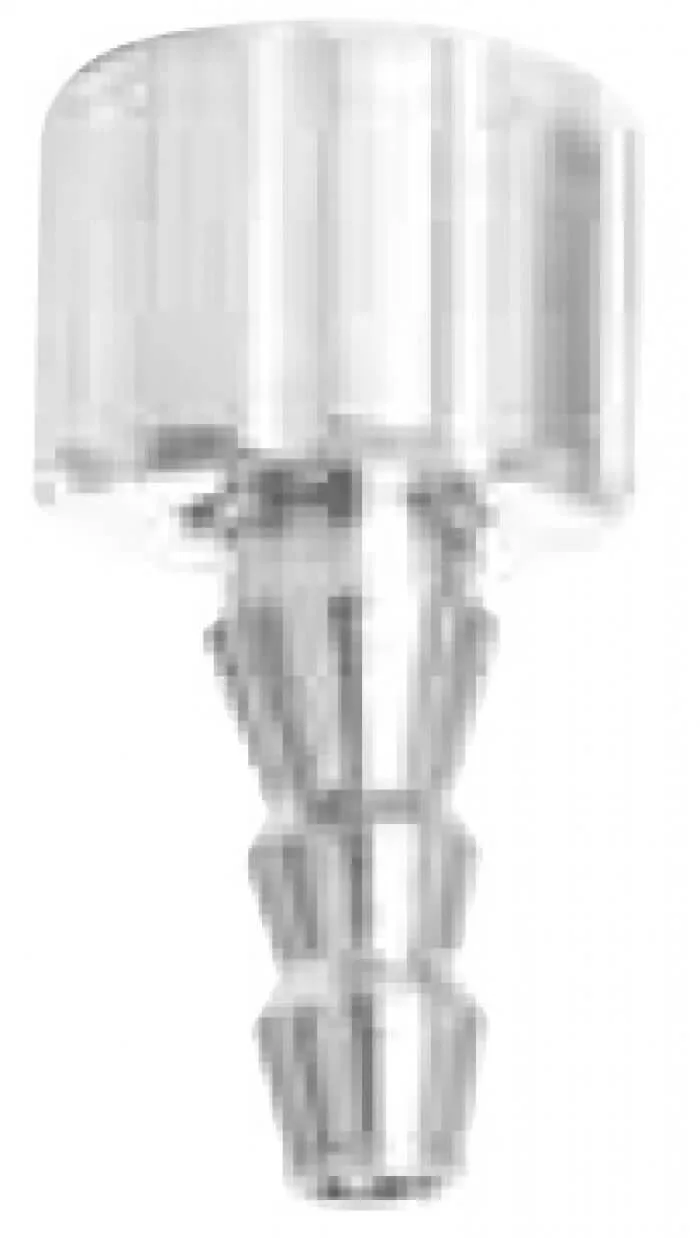

  • Hose barb with nut for RTM3 – Flowmeters

    Hose barb with nut for RTM3

    • 3/8G – catalogue number 73500.79
    • 9/16“ – catalogue number 73500.80

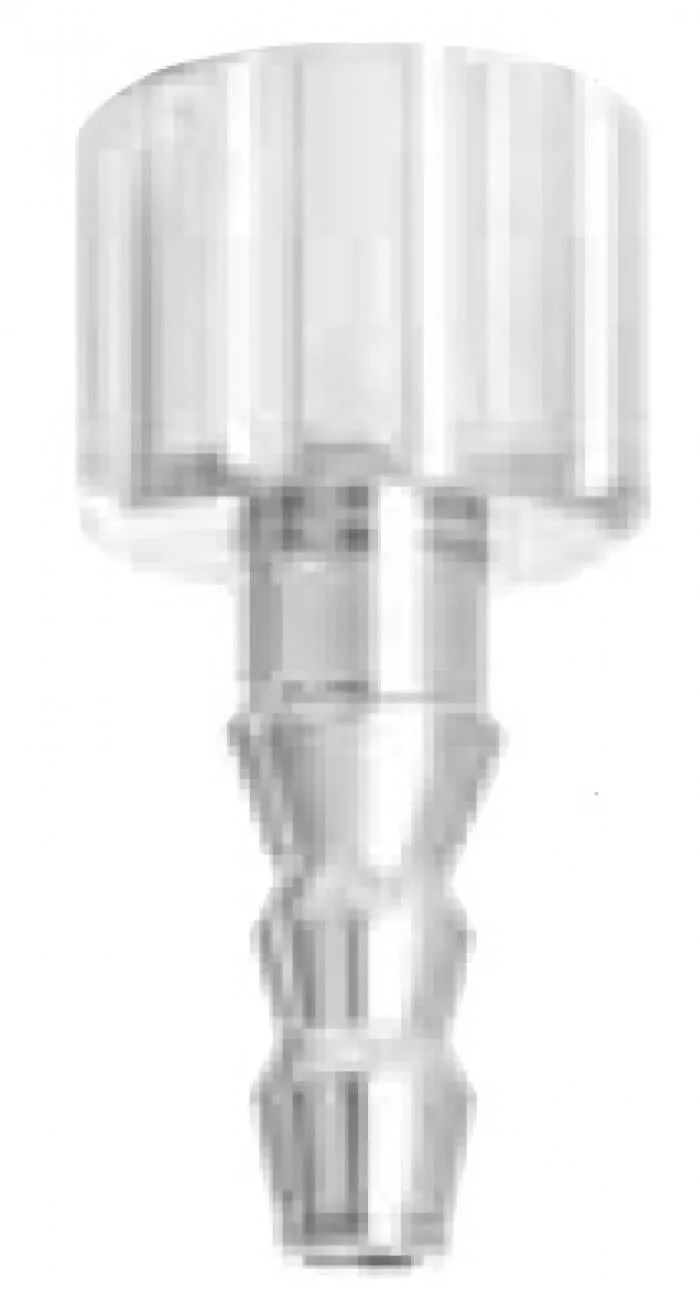

  • Fixed hose barb for RTM3 – Flowmeters

    Fixed hose barb for RTM3

    • 3/8G – catalogue number 73500.88
    • 9/16“ – catalogue number 73500.89
  • Flowmeters

    MEDISELECT II O2,25L,QC pressure regulator, hose barb G 3/8

    MediSelect II single-stage piston pressure regulator for oxygen with preset outlet pressure, flow selector and two outlets. It is equipped with a rotatable pressure gauge, a rotatable flow outlet, and front and side reading windows.

    • Inlet pressure: 200 bar
    • Outlet pressure: 4 bar
    • Outlet flow: adjustable in steps, 0-25 l / min, (0-1-2-3-4-5-6-7-9-12-15-25 l / min)
    • Inlet connection: W 21.8×1/14"

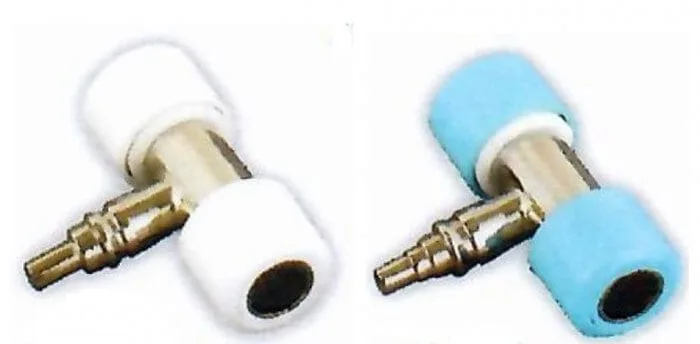

  • T-shaped splitter, CZ connector – Flowmeters

    T-shaped splitter adapter, CZ connector

    • O2 – catalogue number 70105.21
    • AIR – catalogue number 70105.24

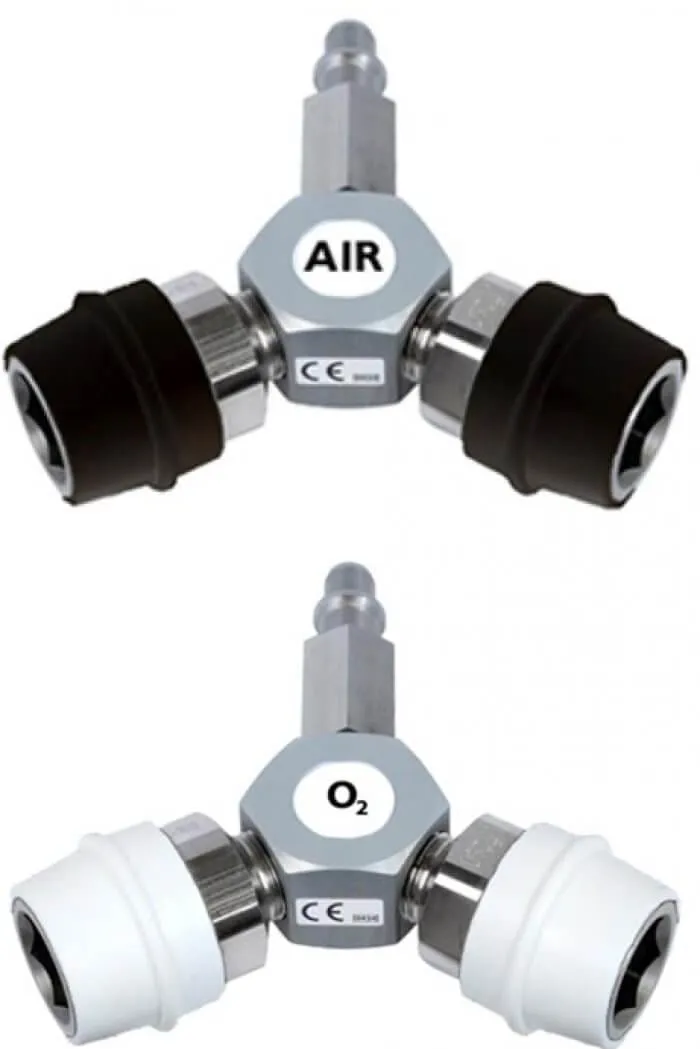

  • Y-shaped splitter, CZ connector – Flowmeters

    Y-shaped splitter adapter, CZ connector

    • O2 – catalogue number 72200.02
    • AIR – catalogue number 70105.50
