ZPT Vigantice MDC V04 IP S

System components

18 components. The system is configured to order – please quote the catalogue number in your inquiry.

•
  110230

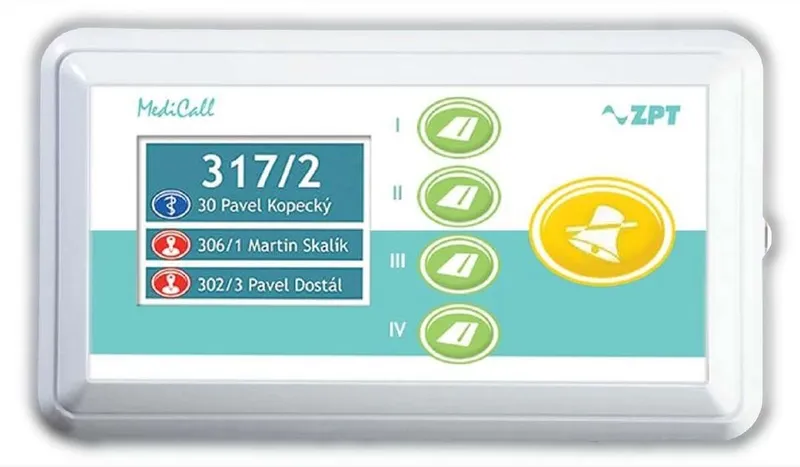

  Staff signalling terminal IP TPS IP

  A wall-mounted or desktop element designed to decentralise the system within an IP signalling system configuration. The unit can also link up to 4 wards and is equipped with a call suppression button.

  • Functions of the element:
  • option to link wards
  • separate registration for each system
  • alarm reception from the individual systems
  • caller identification on the display
  • call suppression function
  • Dimensions: 150 mm x 86 mm x 26 mm
•
  110150

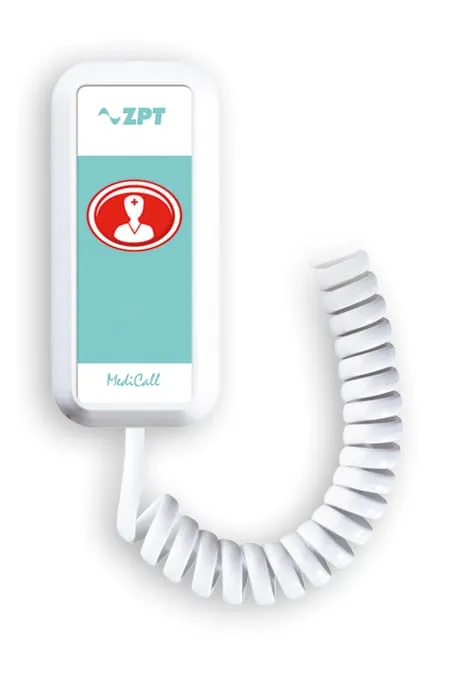

  Call cord IP VS IP

  A switch on a coiled cord, connected via a connector to the communication unit with connector IP, the user holder with speaker IP, the bed unit holder with connector IP, the user socket IP or the call cord socket with button IP.

  • The switch works in the same way as a call button and allows a request for a voice connection to be sent.
  • Dimensions: 40 mm x 84 mm x 27 mm
•
  110165

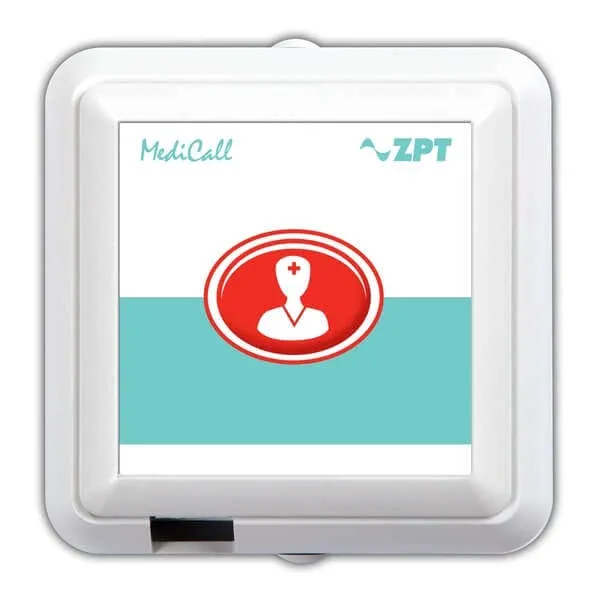

  Call cord socket with button IP ZVST IP

  Used to connect an IP call cord.

  • Dimensions: 86 mm x 86 mm x 27 mm
  • Versions: ZVSB IP (110166) – Wireless call cord socket 868 IP, ZVSB IP (110167) – Wireless call cord socket 869 S IP
•
  110820

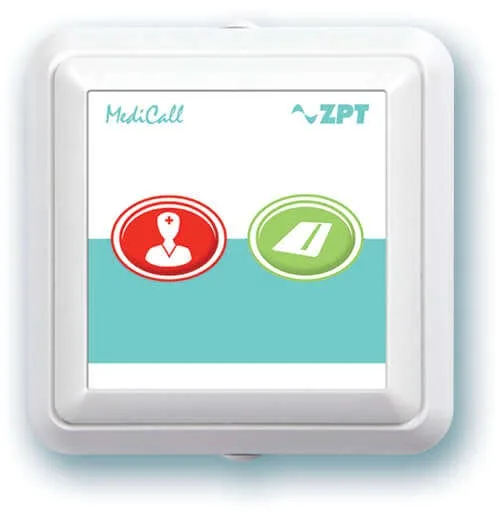

  Call and cancel button IP VRT IP

  An element installed in bathrooms and toilets that form part of a patient room. It is used where an emergency call must be cancelled at the place where it was made.

  • Dimensions: 86 mm x 86 mm x 27 mm
•
  110411

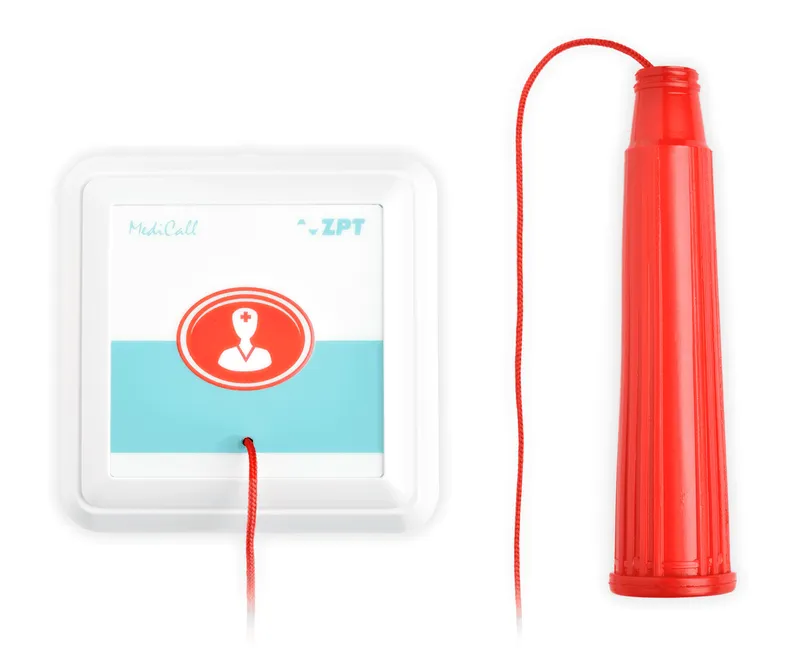

  Emergency pull cord with button IP TTNV IP

  An element which, in combination with the signalling unit IP, the user holder with speaker IP or the communication unit IP, allows an emergency call to be sent to the system.

  • It is used mainly in sanitary rooms near toilets and washbasins.
  • Dimensions: 86 mm x 86 mm x 27 mm
•
  110410

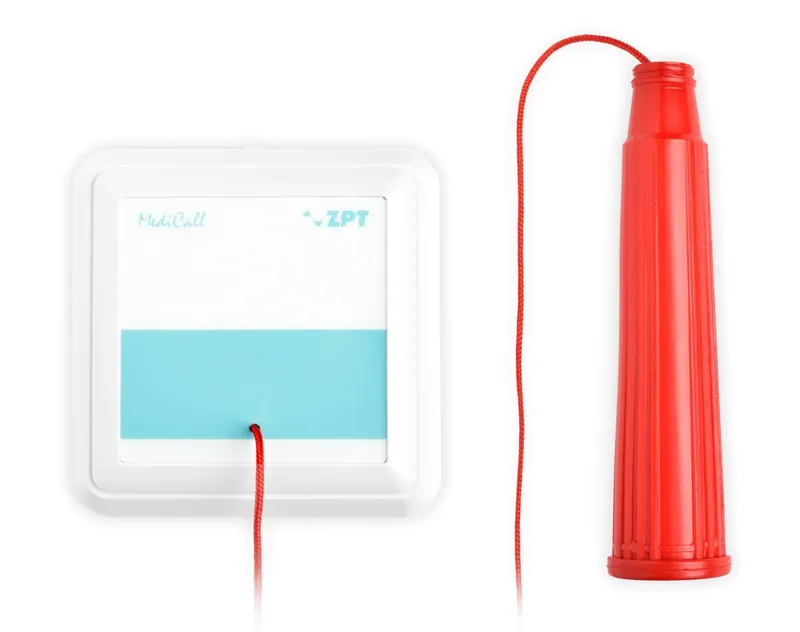

  Emergency pull cord IP TANV IP

  Functionally equivalent to the emergency call button IP. It is installed in bathrooms above bathtubs and in shower areas at a height of at least 2.25 m above the floor.

  • Dimensions: 86 mm x 86 mm x 27 mm
  • Versions: TANVB IP (110412) Wireless emergency pull cord 868 IP, TANVB IP (110413) Wireless emergency pull cord 869 S IP
•
  110400

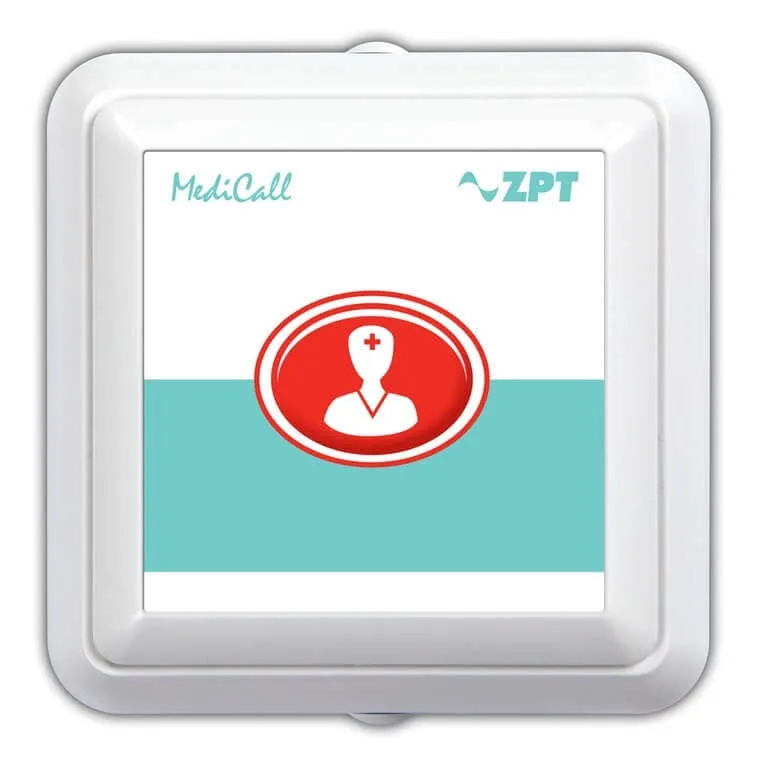

  Emergency call button IP TNV IP

  An element which, in combination with the signalling unit IP, the user holder with speaker IP or the communication unit IP, allows an emergency call to be sent to the system.

  • It is used mainly in sanitary rooms near toilets and washbasins.
  • Dimensions: 86 mm x 86 mm x 27 mm
•
  110430

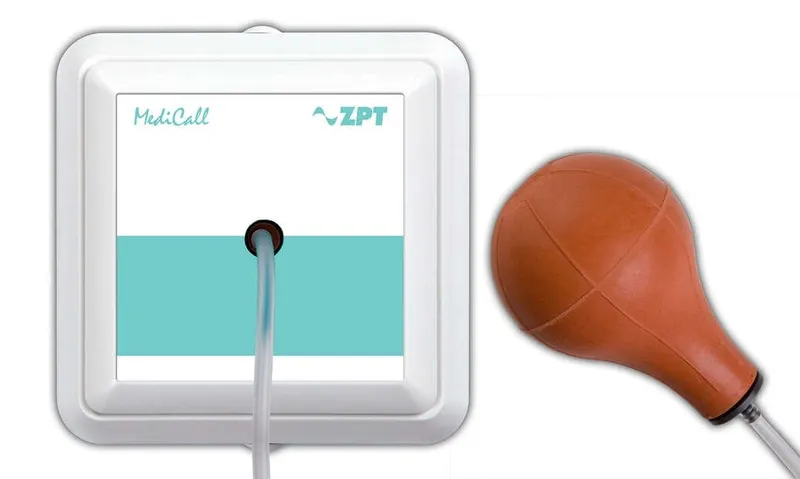

  Pneumatic switch socket IP ZPS IP

  Used to connect the pneumatic switch 110420 (an element consisting of a bulb and a hose for pneumatic actuation of a membrane switch, used in extremely humid environments or in therapeutic and rehabilitation baths).

  • In combination with the signalling unit IP, the user holder with speaker IP or the communication unit IP, it allows an emergency call to be sent to the system.
  • It is installed above or next to the bathtub, or wherever required.
  • Dimensions: 86 mm x 86 mm x 27 mm
•
  110441

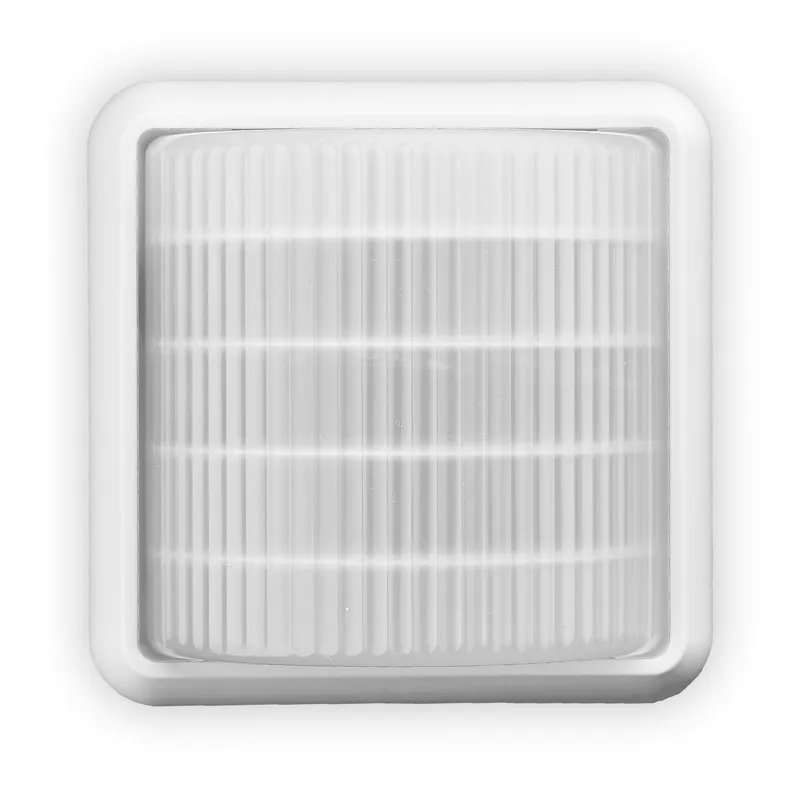

  Signal light IP SV IP

  A five-colour element which, in combination with a connected element, visually indicates the status at the given location.

  • Dimensions: 86 mm x 86 mm x 48 mm
•
  110451

  Directional signal light IP SVS IP

  Used to help staff find their way in complex buildings and areas. It visually indicates the direction from which a client call was sent.

  • Dimensions: 86 mm x 86 mm x 48 mm
•
  110250

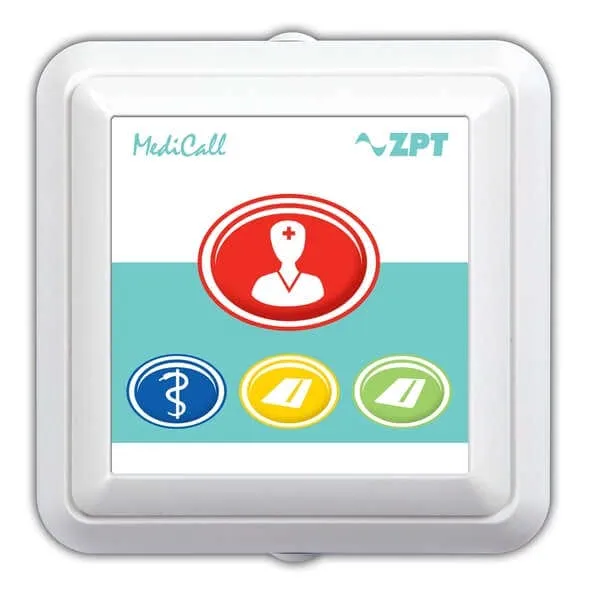

  Signalling unit IP SIJ IP

  An element used in bathrooms and toilets (if they are not part of a patient room), or in staff rest rooms, where acoustic signals from the system need to be relayed.

  • Functions of the element:
  • option to send an emergency call, option to register staff, option to send an alarm, option to connect any number of emergency call pull cords and buttons, relay of acoustic signals when staff are registered, option to communicate with wireless buttons – SIJB IP
  • option to send an emergency call
  • option to register staff
  • option to send an alarm
  • option to connect any number of emergency call pull cords and buttons
  • relay of acoustic signals when staff are registered
  • option to communicate with wireless buttons – SIJB IP
  • The SBUS input module IP (110480) connects external equipment (fire alarm systems, etc.) to the MDCV 04 IP system. It is used wherever external equipment that closes a potential-free contact needs to be connected.
  • The external device socket ZEZ IP (110481) is fully equivalent to the SBUS input module (110480) and is additionally fitted with an RJ 11 connector.
  • Dimensions: 86 mm x 86 mm x 27 mm
  • Versions: SIJ RFID IP (110250) – Signalling unit with RFID IP, SIJB IP (110251) – Wireless signalling unit 868 IP, SIJB RFID IP (110251) – Wireless signalling unit 868 with RFID IP, SIJB IP (110252) – Wireless signalling unit 869 S IP, SIJB RFID IP (110252) Wireless signalling unit 869 S with RFID IP
•
  110260

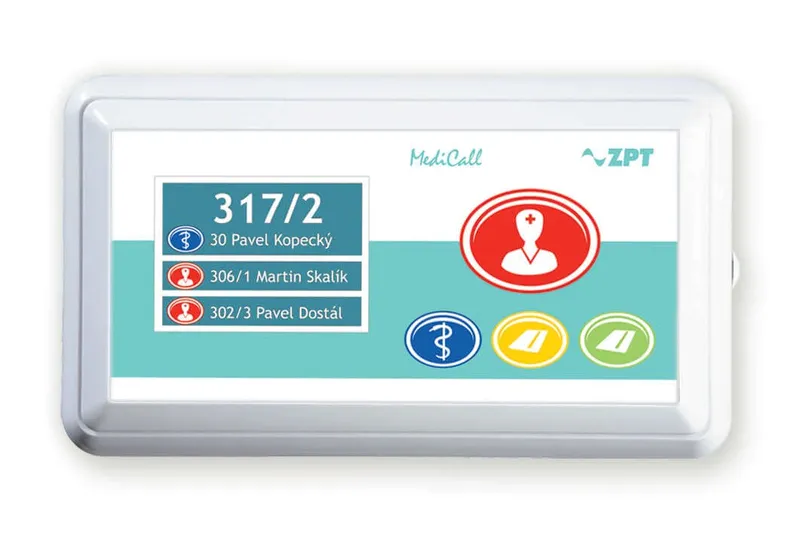

  Signalling unit with display IP SIJD IP

  Compared with the IP signalling unit, this element adds a display that shows identification details of each call – the exact address of the location where the call was activated, the call type, a description of the calling location and the name of the calling user.

  • Dimensions: 86 mm x 150 mm x 27 mm
  • Versions: SIJD RFID IP (110260) – Signalling unit with display and RFID IP, SIJDB IP (110261) – Wireless signalling unit 868 with display IP, SIJDB RFID IP (110261) – Wireless signalling unit 868 with display and RFID IP, SIJDB RFID IP (110262) – Wireless signalling unit 869 S with display and RFID IP
•
  110361

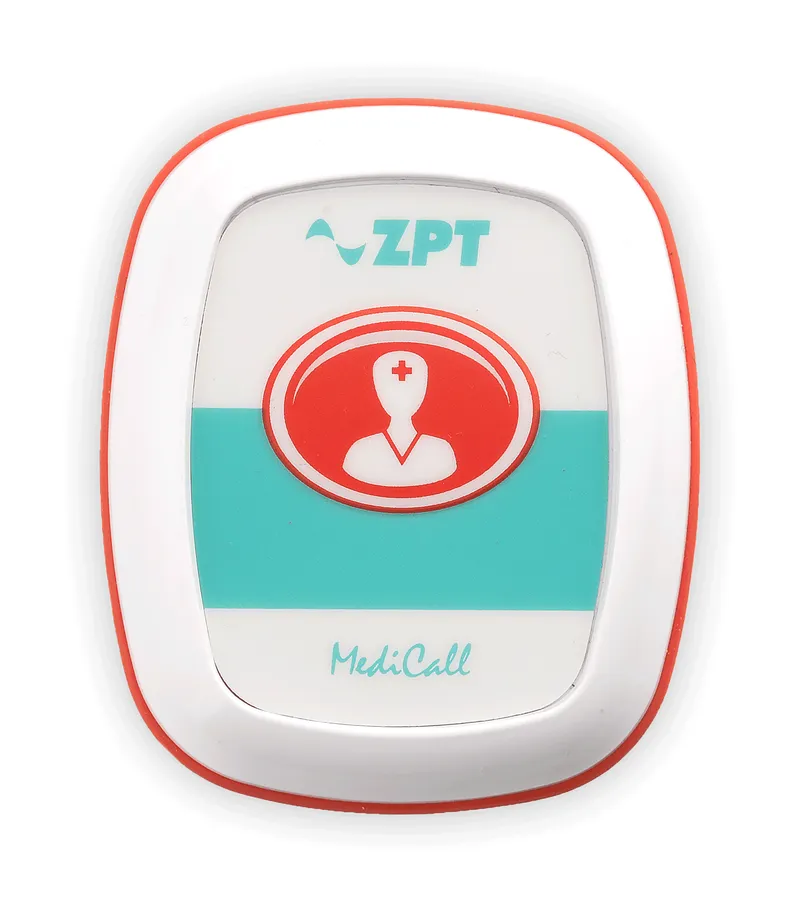

  Wireless user button 868 IP BTU IP

  The element is used to trigger an emergency call wirelessly. It is particularly suitable where the user can move freely around the room or ward but must be able to summon staff at any time (sudden indisposition, etc.).

  • Dimensions: 40 mm x 84 mm x 27 mm
  • Versions: BTU IP (110361) Wireless user button 868 IP, neck-worn, Wireless user button 868 IP with clip, BTU IP (110362) – Wireless user button 869 S IP, Wireless user button 869 S IP, neck-worn, Wireless user button 869 S IP with clip, BTUM IP (110363) – Wireless user button 869 S multi IP, Wireless user button 869 S multi IP, neck-worn, Wireless user button 869 S multi IP with clip
•
  109500

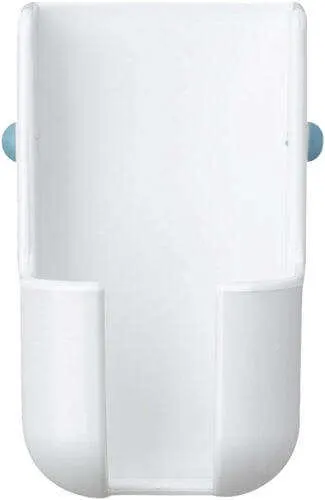

  Call cord holder for ZLJ ZVSZ

  An element used with the bed unit holder with connector IP when only a call cord, rather than a bed unit, is provided at the user's bed.

  • Dimensions: 55 mm x 95 mm x 40 mm
•
  110030

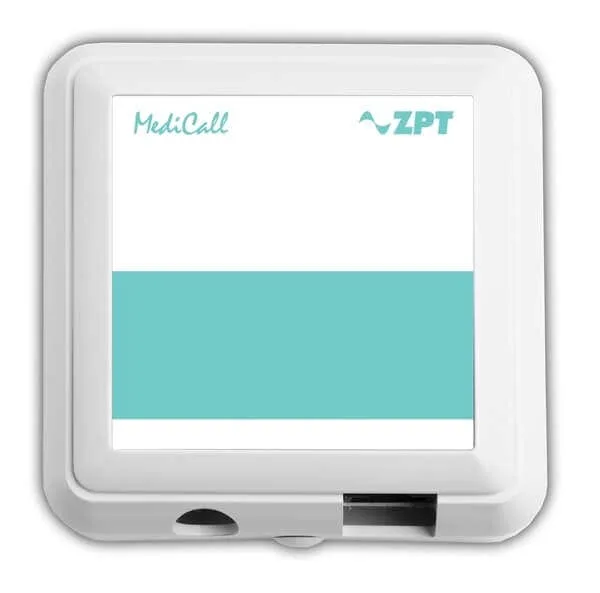

  Ethernet socket IP ZE IP

  The Ethernet socket serves as the interface for connecting the staff terminal to the system bus.

  • Dimensions: 86 mm x 86 mm x 27 mm
•
  110041

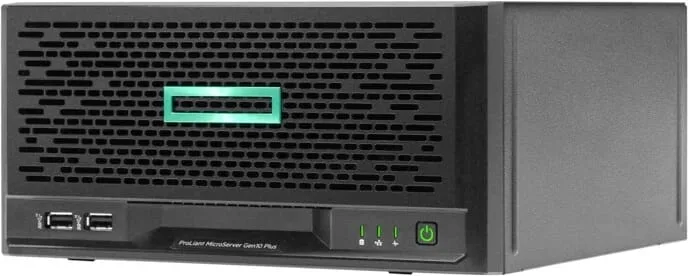

  VoIP system server Acrios SSV IP

  The central element used to control and manage the entire system.

  • Dimensions: 119 mm x 245 mm x 245 mm
  • The server is supplied with an 8-port Ethernet switch SW8 IP (110660) for connecting the individual branches of the system wiring.
  • The backup power supply for SSV – ZZ (110690) keeps the server powered in the event of an unexpected power failure and also protects it against overvoltage.
  • Data cabinet DR6 (110790) for housing the SSV IP server and the switch (the data switch is supplied with the system server), 6U size with removable side panels, IP30 certified.
  • Analogue VoIP gateway IP – AVB IP (110810), connecting the system to public telephone networks.
  • The GSM SMS gateway IP Acrios – GSM SMS IP (110852) connects the MDCV04IP system to the GSM network.
  • Detection gate module IP – MDB IP (110861) for monitoring persons who leave a given section or building without authorisation. AMDB IP (110862) Detection gate module antenna IP.
  • Paging exchange – PU (110670), Text pager – PT (110680), Paging control console IP – OPP IP (110675) – elements that allow signals to be transmitted from the MediCall system. The information is transmitted in text form to the client's text pager.
•
  110640

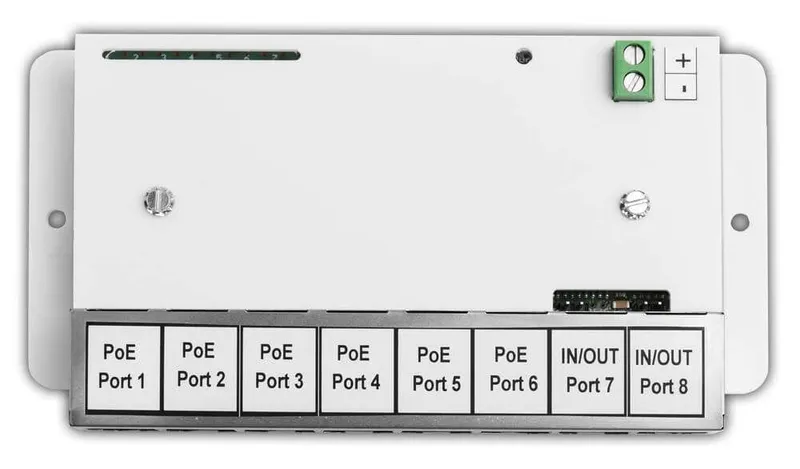

  Switch module ZPT IP SM IP

  An installation element used to build the system's Ethernet network.

  • Dimensions: 110 mm x 85 mm x 15 mm
•
  110091

  Power supply 350 W 24 V IP N350 IP

  A stand-alone unit connected on the input side to the mains and on the output side to the supply line. Mains supply requirements – 1+N+PE 230V/50Hz. The mains supply lines must be protected by a separate 6A circuit breaker. Maximum power input 100VA.

  • Dimensions: 305 mm x 200 mm x 95 mm
