ZPT Vigantice MDC V04 IP

System components

42 components. The system is configured to order – please quote the catalogue number in your inquiry.

•

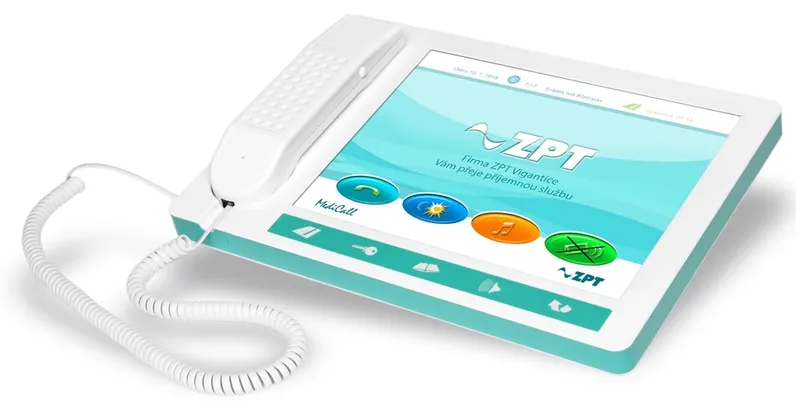

  110013

  Staff terminal IP Acrios TP IP

  The staff terminal is the element that controls the entire system. It is placed on a desk in the nurses' station and is connected by cable to the system bus via an Ethernet socket. The staff terminal can be linked with other terminals for joint operation; the linked systems then work as a single system with all functions retained – unlike conventional systems, which transmit only acoustic signals in joint operation.

  • Dimensions: 360 mm x 250 mm x 120 mm
  • Versions: TP N IP (110014) – Staff terminal IP Acrios, wall-mounted – wall mounting, TP RFID IP (110013) – Staff terminal with RFID IP Acrios – wall mounting, TP RFID N IP (110014) – Staff terminal with RFID IP Acrios, wall-mounted – wall mounting
  • On the TP IP version with an RFID module, staff register using an RFID TAG (110500, 110501).
•

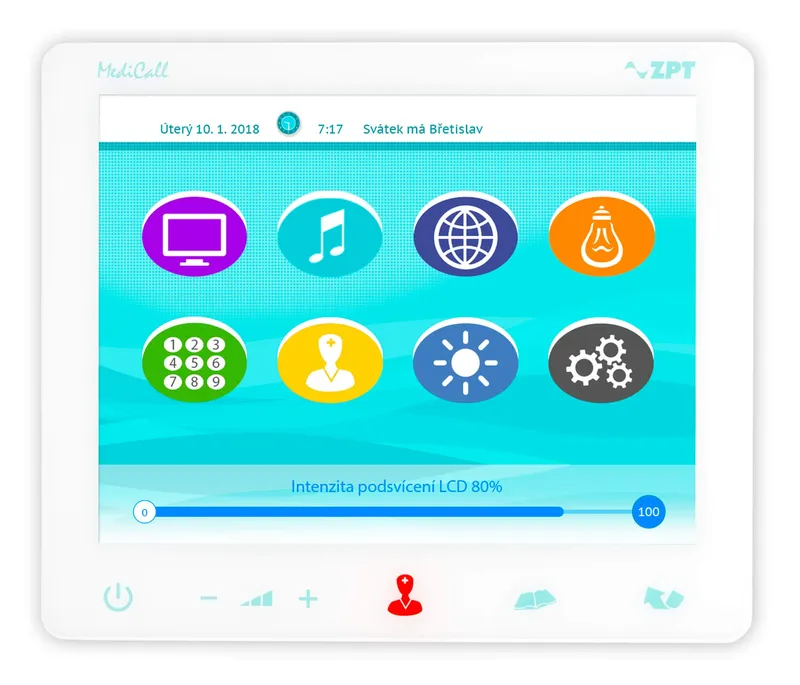

  110020

  Client terminal IP TK IP

  Client terminal:

  • call to a nurse or “auxiliary staff”
  • hands-free communication with the nurse and auxiliary staff
  • relay of central announcements
  • web browsing
  • listening to entertainment programmes
  • watching TV programmes (in combination with a media streamer)
  • headphone connection for discreet listening
  • control of client room equipment – lighting and blinds
  • integrated RFID reader for staff registration and identification
  • Nurse mode (once the nurse's presence has been registered):
  • acoustic signalling of client or staff calls, clearly shown on the display with unambiguous identification of the calling location.
  • option to establish a voice connection with the calling party
  • option of a non-addressed call to a doctor or another nurse
  • option of an addressed call to any participant
  • overview of staff distribution on the ward
  • Dimensions: 300 mm x 250 mm
•

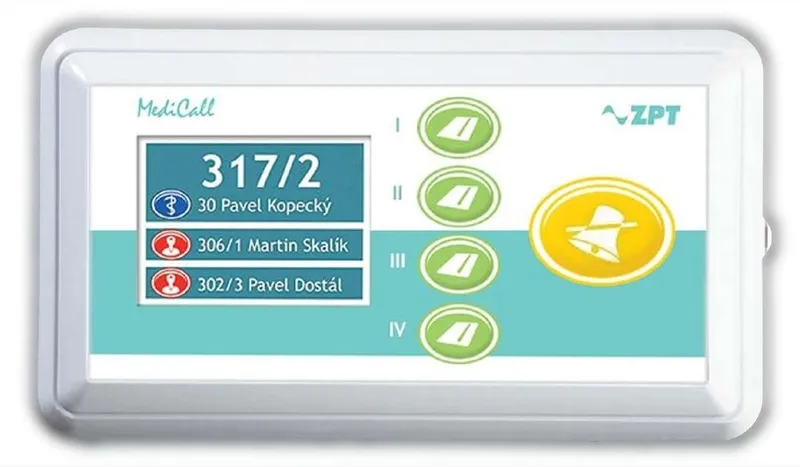

  110230

  Staff signalling terminal IP TPS IP

  A wall-mounted or desktop element designed to decentralise the system within an IP signalling system configuration. The unit can also link up to 4 wards and is equipped with a call suppression button.

  • Functions of the element:
  • option to link wards
  • separate registration for each system
  • alarm reception from the individual systems
  • caller identification on the display
  • call suppression function
  • Dimensions: 150 mm x 86 mm x 26 mm
•

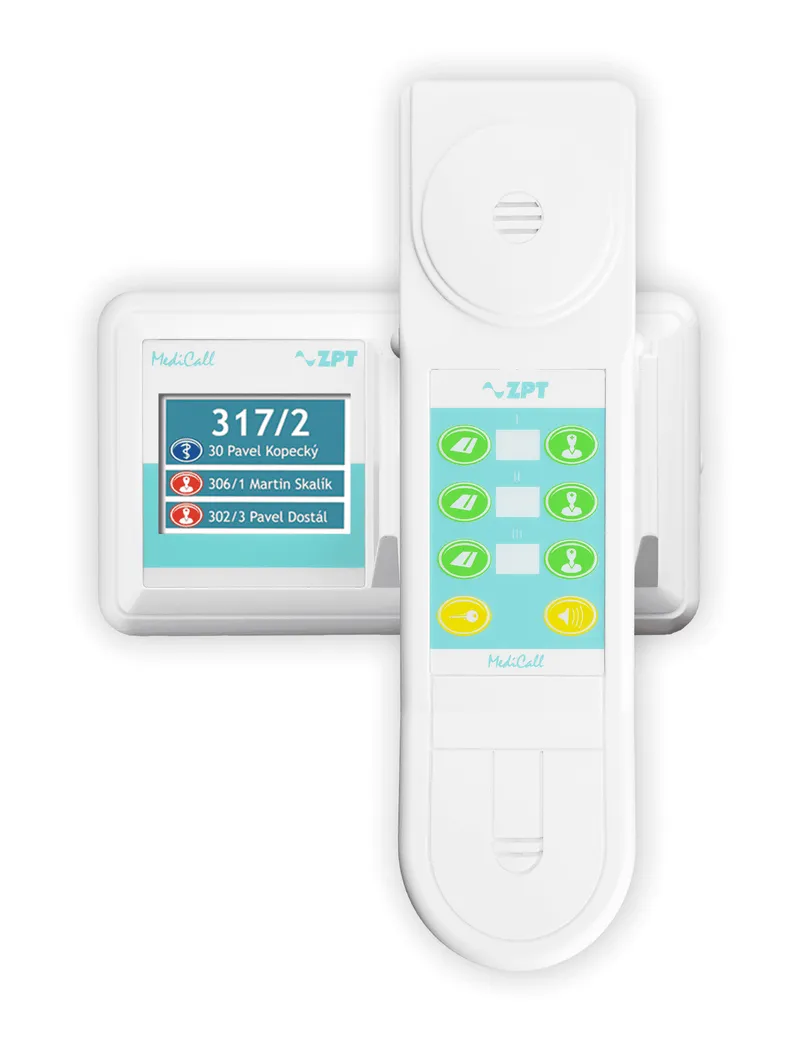

  110331

  Duty unit with display IP SJD IP

  A wall-mounted element. It is used, for example, on wards that include high-dependency beds under continuous nursing supervision. Calls from these beds are routed with priority to this unit only, and if they are not answered within a preset time, they are passed on to the whole system.

  • Functions of the element:
  • available in a nurse or doctor version
  • option to connect to several independent systems
  • separate registration for each system
  • option to send an addressed request for a voice connection to the individual systems
  • alarm reception from the individual systems with the option to establish a voice connection
  • option of a voice connection with all communication elements of the system or of systems in joint operation
  • option to control the electric lock (EZ) of the entrance door
  • caller identification on the display
  • allows separate subsections to be split off from the system
  • Dimensions: 150 mm x 86 mm x 45 mm
•
  110310

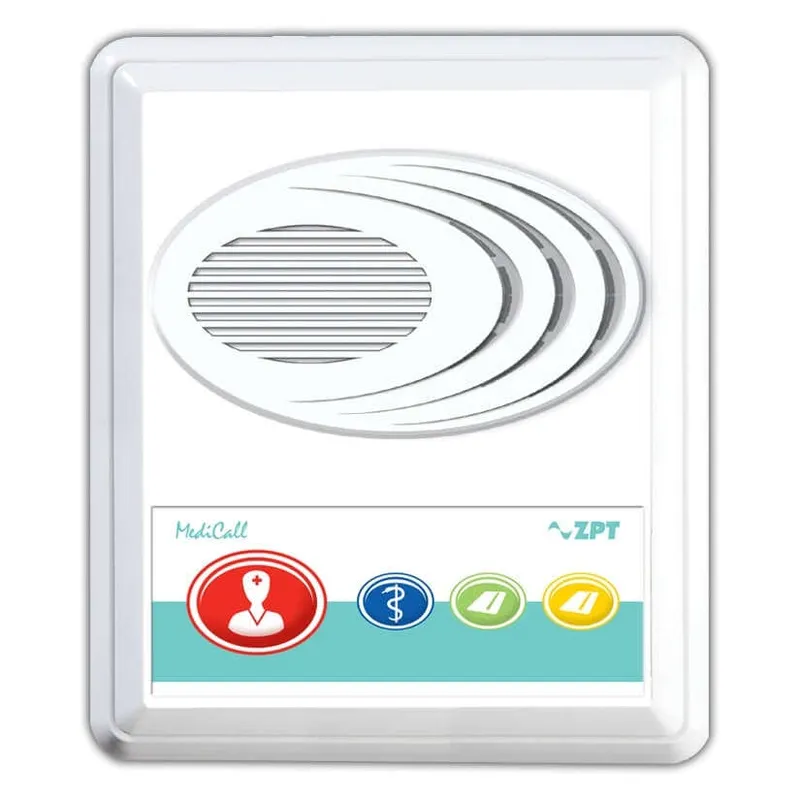

  Communication unit IP KJ IP

  An element that combines controls for both users and staff.

  • Functions of the element:
  • choice of registration method (card, button)
  • option to control the electric lock (EZ) of the entrance door
  • sending a request for a connection with the nurse
  • hands-free voice connection with staff
  • connection of a handset for a discreet connection via the KJ IP connector
  • connection of a call cord via the KJ IP connector
  • listening to entertainment programmes with volume control (when a bed unit is connected)
  • receiving a telephone call from the public telephone network
  • receiving calls from systems in joint operation with the option of two-way communication
  • registration of the nurse's presence
  • triggering a staff alarm
  • connection of emergency call buttons and pull cords
  • two-way communication with all communication elements of the system
  • loudspeaker playback of messages from the staff terminal to the room, or to the whole ward as a central announcement
  • acoustic signalling of all calls from other locations in the system and from systems in joint operation
  • option to connect a bed unit
  • control of the signal light
  • option to communicate with wireless buttons – KJB IP
  • Dimensions: 130 mm x 150 mm x 48 mm
  • Versions: KJ RFID IP (110310) Communication unit with RFID IP, KJK IP (110311) Communication unit with connector IP, KJB IP (110312) Wireless communication unit 868 IP, KJB RFID IP (110312) Wireless communication unit 868 with RFID IP, KJKB IP (110313) Wireless communication unit with connector 868 IP, KJKB RFID IP (110313) Wireless communication unit with connector 868 with RFID IP, KJB IP (110314) Wireless communication unit 869 S IP, KJB RFID IP (110314) Wireless communication unit 869 S with RFID IP
•

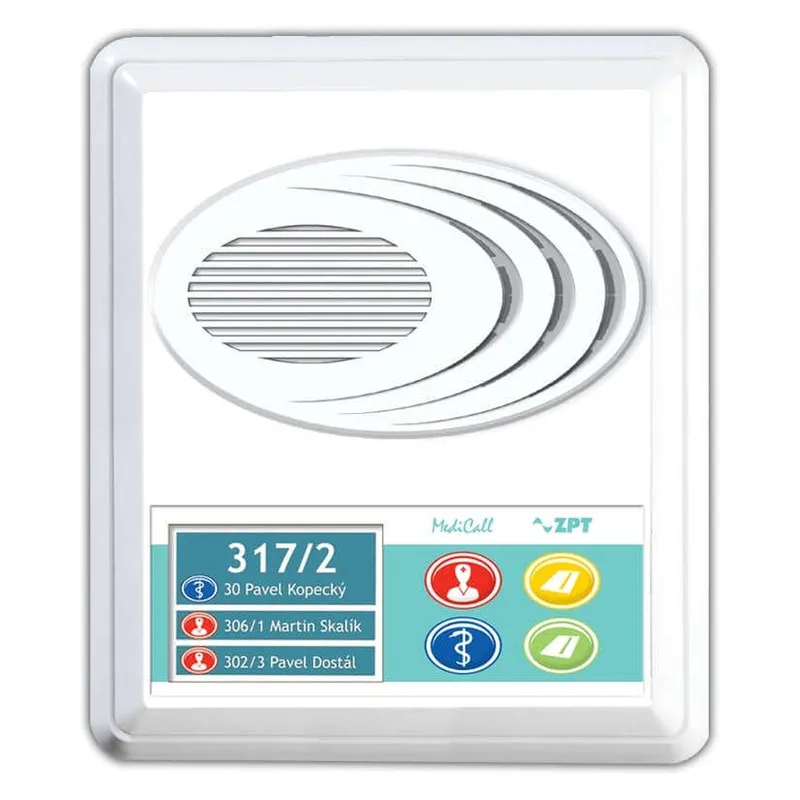

  110320

  Communication unit with display IP KJD IP

  Compared with the IP communication unit, this element adds a display that shows identification details of each call – the exact address of the location where the call was activated, the call type, a description of the calling location and the name of the calling client.

  • Dimensions: 130 mm x 150 mm x 48 mm
  • Versions: KJD RFID IP (110320) Communication unit with display and RFID IP, KJDB IP (110321) Wireless communication unit 868 with display IP, KJDB RFID IP (110321) Wireless communication unit 868 with display and RFID IP, KJDB IP (110322) Wireless communication unit 869 S with display IP, KJDB RFID IP (110322) Wireless communication unit 869 S with display and RFID IP
•

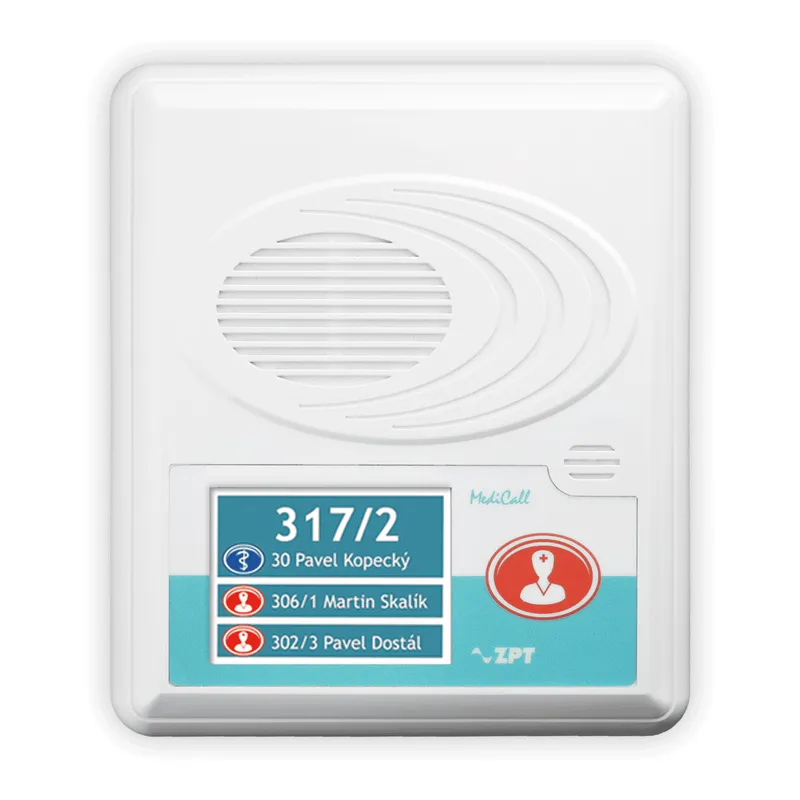

  110201

  Communication unit with touch display IP KJDD IP

  Compared with the IP communication unit, this element adds a touch display that shows identification details of each call – the exact address of the location where the call was activated, the call type, a description of the calling location and the name of the calling client.

  • Dimensions: 130 mm x 150 mm x 48 mm
  • Versions: KJDD RFID IP (110201) – Communication unit with touch display and RFID IP
•
  110281

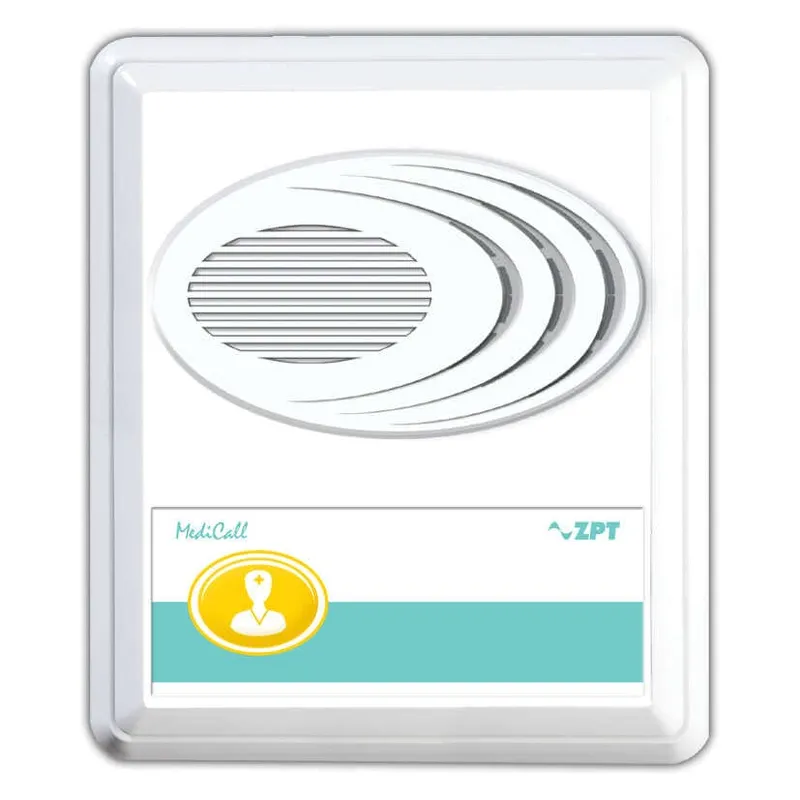

  Entrance communication unit IP VKJ IP

  An element installed next to the ward entrance door, intended mainly for visitors.

  • Functions of the element:
  • option to send a request for a voice connection with staff
  • voice connection
  • Dimensions: 130 mm x 150 mm x 48 mm
  • Versions: VKJ RFID IP (110281)
•
  110122

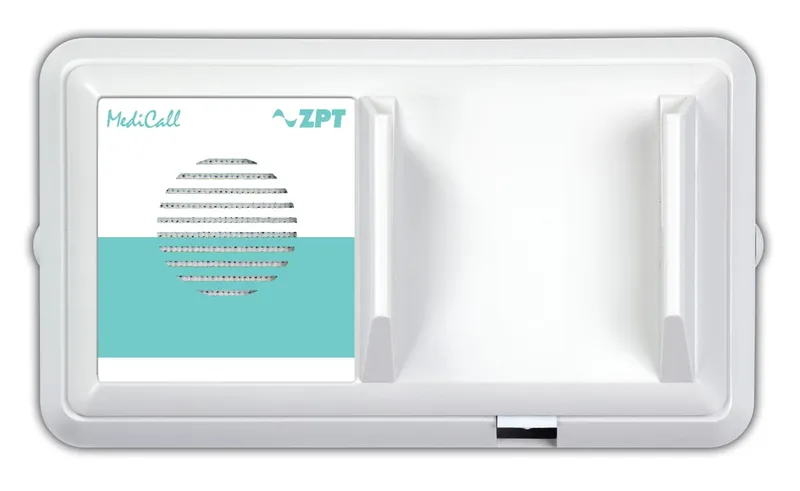

  Bed unit holder with speaker ZLJR IP

  An element with a built-in speaker that provides a one-way voice connection towards the user, and with a connector for connecting user elements.

  • Functions of the element:
  • hands-free one-way connection
  • option to connect a bed unit for a discreet two-way voice connection
  • option to connect a call cord with microphone for a hands-free two-way connection
  • option to connect a call cord
  • loudspeaker listening to entertainment programmes
  • loudspeaker playback of messages from the staff terminal and the duty unit with display
  • detection of the bed unit being hung up
  • Dimensions: 150 mm x 86 mm x 45 mm
•

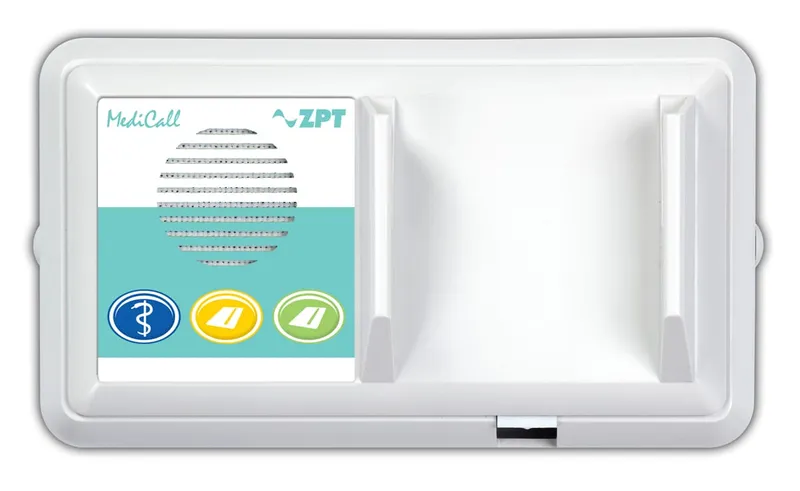

  110140

  User holder with speaker IP ZUR IP

  An element with a built-in speaker that provides a one-way voice connection towards the user, and with a connector for connecting user elements. It is used mainly in social care settings, where it considerably reduces the cost of acquiring the system.

  • Functions of the element:
  • hands-free one-way connection
  • option to connect a user handset for a discreet two-way voice connection via the connector
  • option to connect a call cord via the connector
  • connection of emergency call buttons and pull cords
  • loudspeaker playback of messages from the staff terminal and the duty unit with display
  • staff registration
  • listening to entertainment programmes with volume control
  • control of the signal light
  • Dimensions: 72 mm x 136 mm x 42 mm
  • Versions: ZUR RFID IP (110140) – User holder with speaker and RFID IP, ZURB IP (110141) – Wireless user holder with speaker 868 IP
•
  110100

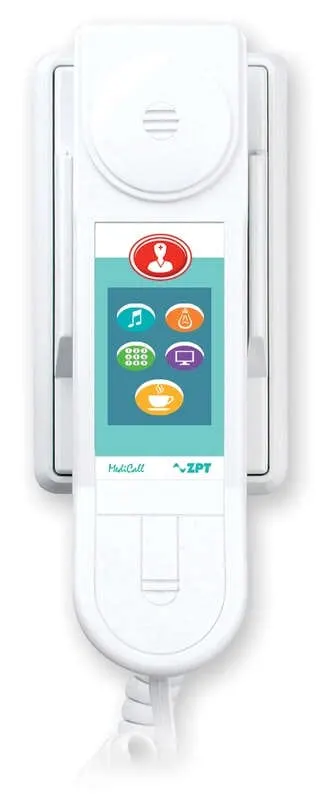

  Bed unit with display IP LJD IP

  An element shaped like a telephone handset, placed next to the user's (patient's or client's) bed. It connects to the system either via the connector on the bed unit holder with connector IP in the standard version, or via the connector on the user socket IP when installed in patient bedhead units (in that case a bed unit holder without connector IP is also supplied).

  • The LJD IP can be used to control the bedhead unit or room lighting; the connection between the control device and the light is provided by the Lighting relay module IP (110115).
  • TV sound can be played through the speaker of the LJD IP or LJ IP; the connection between the TV audio interface and the MDCV04IP system is provided by the TV interface IP (110160).
  • Functions of the element:
  • sending a request and establishing a voice connection
  • option to listen to entertainment programmes
  • volume control for entertainment programmes
  • display showing the date, time and entertainment programme
  • voice connection
  • taking over a telephone call from the public telephone network
  • lighting control on the patient bedhead unit
  • Dimensions: 54 mm x 200 mm x 25 mm (LJD IP), 86 mm x 150 mm x 45 mm (ZLJK IP)
•

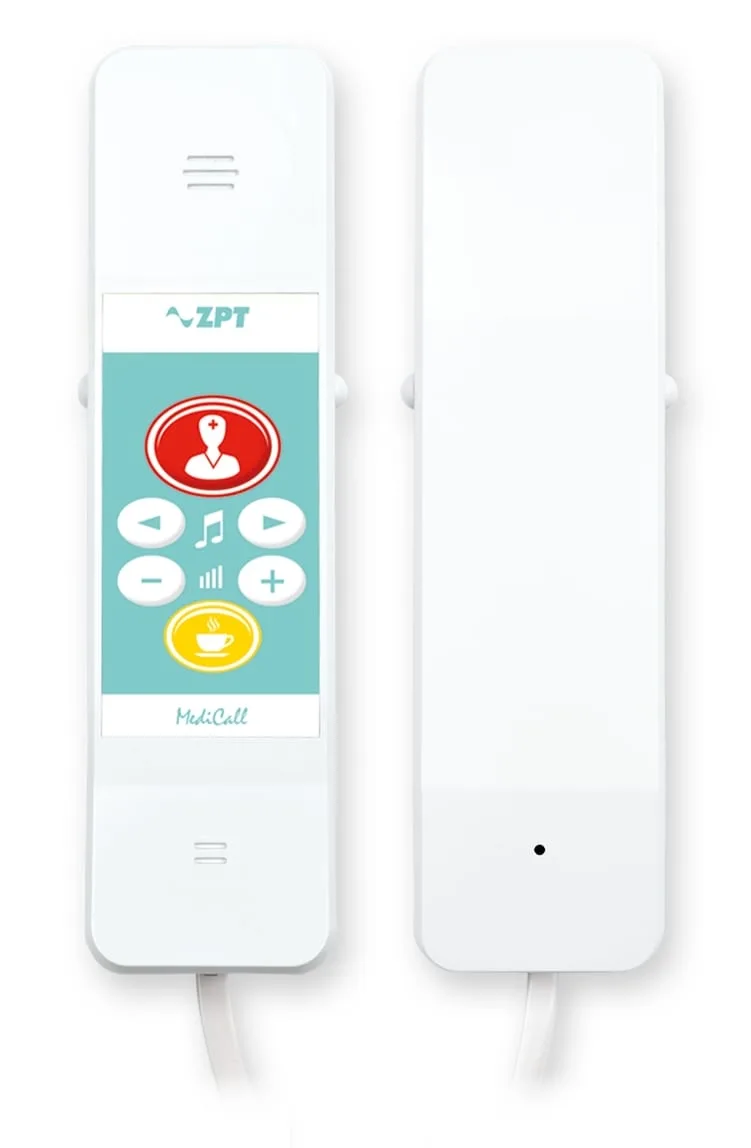

  110116

  Bed unit IP LJ IP

  An element shaped like a telephone handset, placed next to the user's (patient's or client's) bed. It connects to the system either via the connector on the bed unit holder with connector IP in the standard version, or via the connector on the user socket IP when installed in patient bedhead units (in that case a bed unit holder without connector IP is also supplied).

  • Functions of the element:
  • sending a request and establishing a voice connection
  • option to listen to entertainment programmes
  • volume control for entertainment programmes
  • voice connection
  • taking over a telephone call from the public telephone network
  • Dimensions: 54 mm x 200 mm x 25 mm
  • Versions: LJO IP (110117) – Bed unit with lighting control IP
•

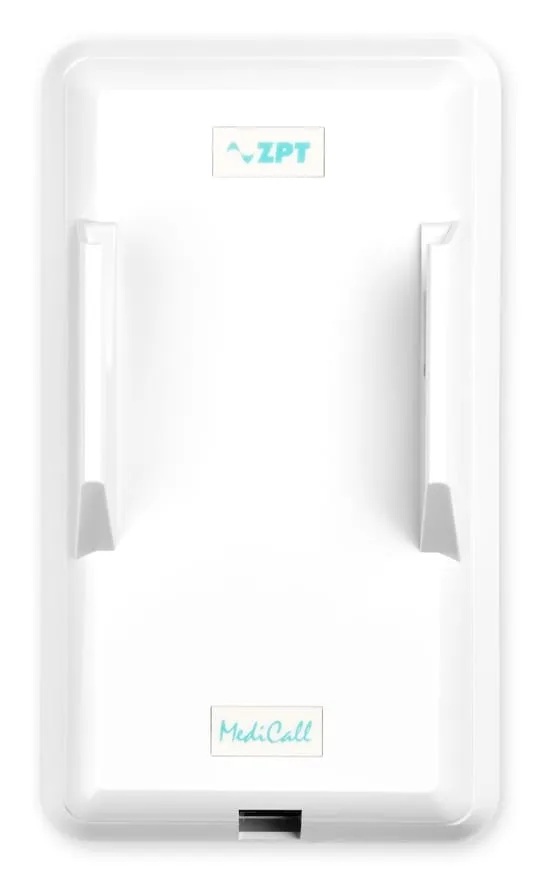

  110123

  Bed unit holder with connector IP ZLJK IP

  Allows an IP bed unit (which can be hung on the holder) or an IP call cord to be connected via the connector.

  • Dimensions: 86 mm x 150 mm x 45 mm
  • Versions: ZLJKE IP (110121) – Bed unit holder with Ethernet IP, ZLJ IP (110131) – Bed unit holder without connector IP
•

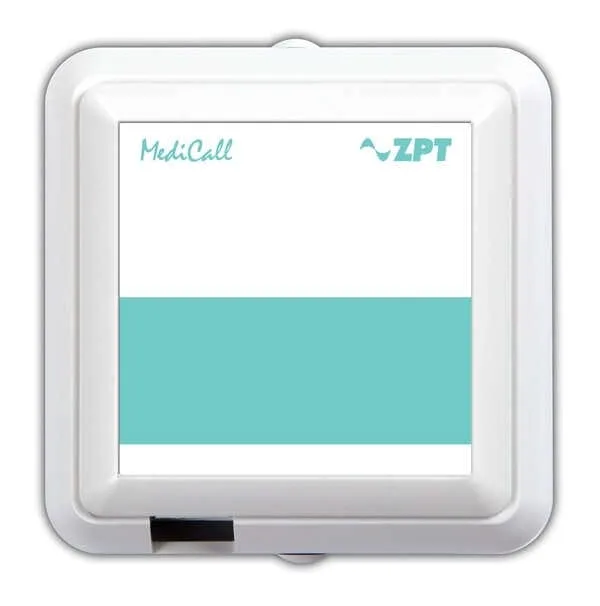

  110190

  User socket IP ZU IP

  Used to connect an IP emergency call cord or, on a patient bedhead unit, an IP bed unit.

  • Dimensions: 86 mm x 86 mm x 27 mm
  • Versions: ZUO IP (110191) – User socket with lighting control IP
•

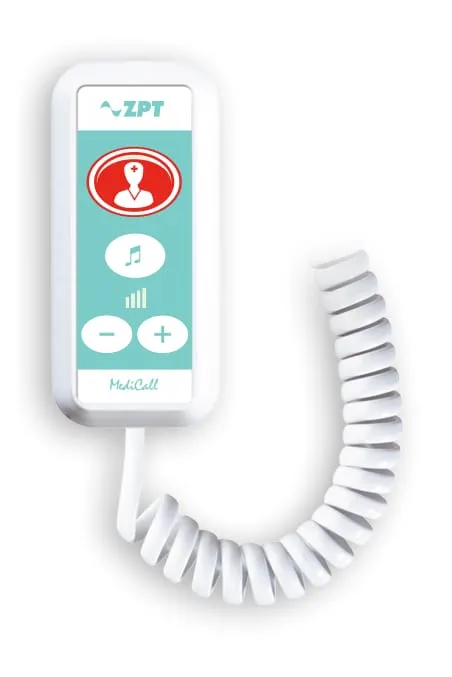

  110152

  Call cord with microphone IP VSM IP

  A switch on a coiled cord with its own built-in microphone, connected via a connector to the ZLJR IP or KJK IP. It allows a connection request to be sent and a conversation with staff to be held using the speaker of the connected elements.

  • Dimensions: 40x84x27 mm + cord
•

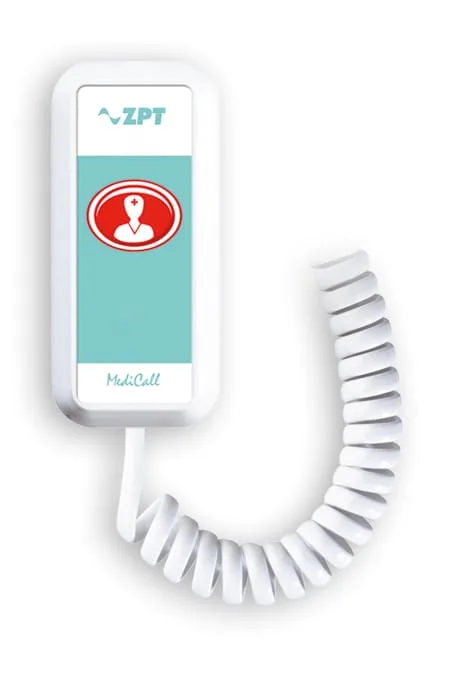

  110150

  Call cord IP VS IP

  A switch on a coiled cord, connected via a connector to the communication unit with connector IP, the user holder with speaker IP, the bed unit holder with connector IP, the user socket IP or the call cord socket with button IP.

  • The switch works in the same way as a call button and allows a request for a voice connection to be sent.
  • Dimensions: 40 mm x 84 mm x 27 mm
•
  110165

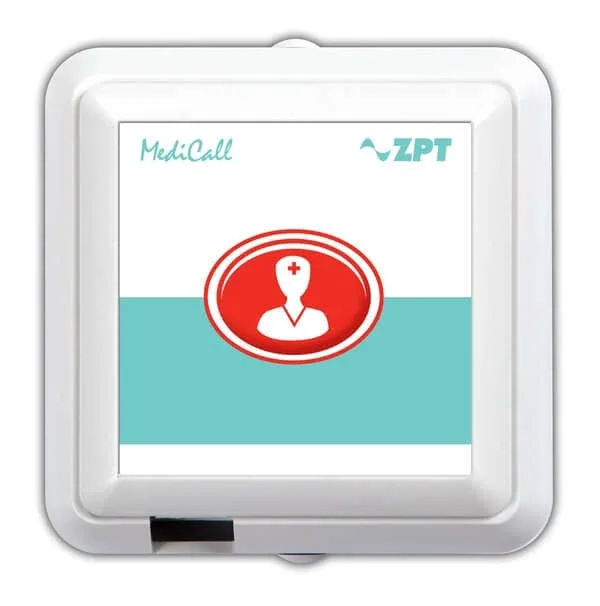

  Call cord socket with button IP ZVST IP

  Used to connect an IP call cord.

  • Dimensions: 86 mm x 86 mm x 27 mm
  • Versions: ZVSB IP (110166) – Wireless call cord socket 868 IP, ZVSB IP (110167) – Wireless call cord socket 869 S IP
•
  110820

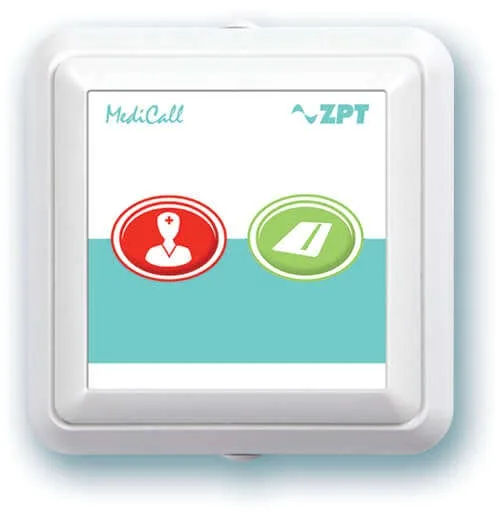

  Call and cancel button IP VRT IP

  An element installed in bathrooms and toilets that form part of a patient room. It is used where an emergency call must be cancelled at the place where it was made.

  • Dimensions: 86 mm x 86 mm x 27 mm
•

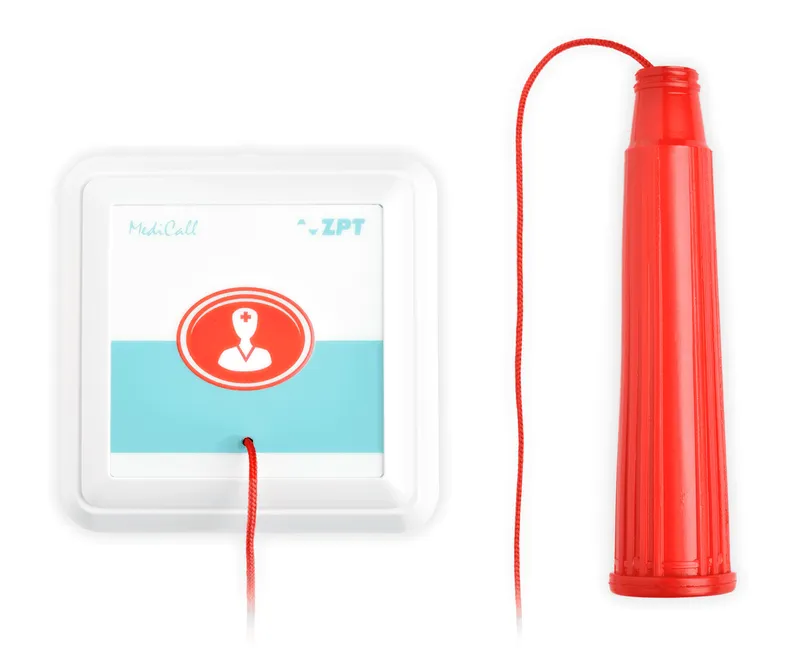

  110411

  Emergency pull cord with button IP TTNV IP

  An element which, in combination with the signalling unit IP, the user holder with speaker IP or the communication unit IP, allows an emergency call to be sent to the system.

  • It is used mainly in sanitary rooms near toilets and washbasins.
  • Dimensions: 86 mm x 86 mm x 27 mm
•

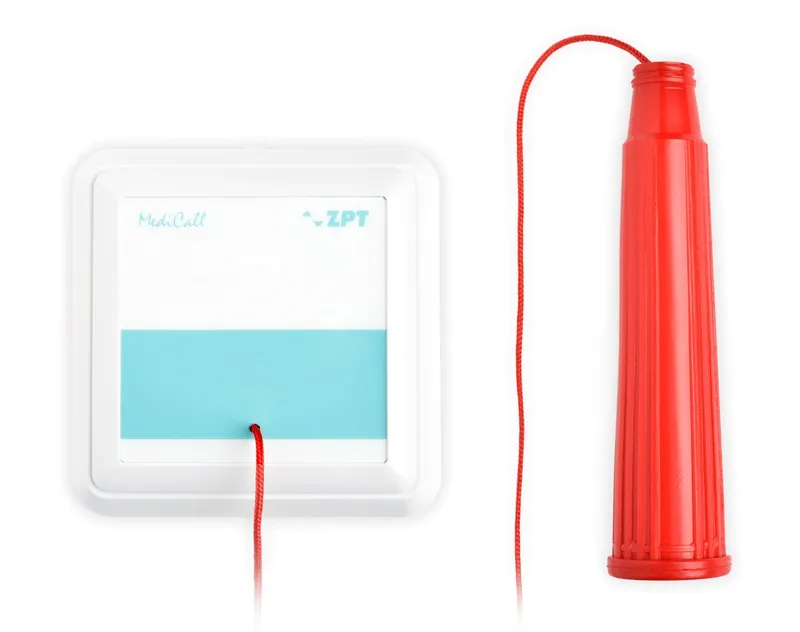

  110410

  Emergency pull cord IP TANV IP

  Functionally equivalent to the emergency call button IP. It is installed in bathrooms above bathtubs and in shower areas at a height of at least 2.25 m above the floor.

  • Dimensions: 86 mm x 86 mm x 27 mm
  • Versions: TANVB IP (110412) Wireless emergency pull cord 868 IP, TANVB IP (110413) Wireless emergency pull cord 869 S IP
•

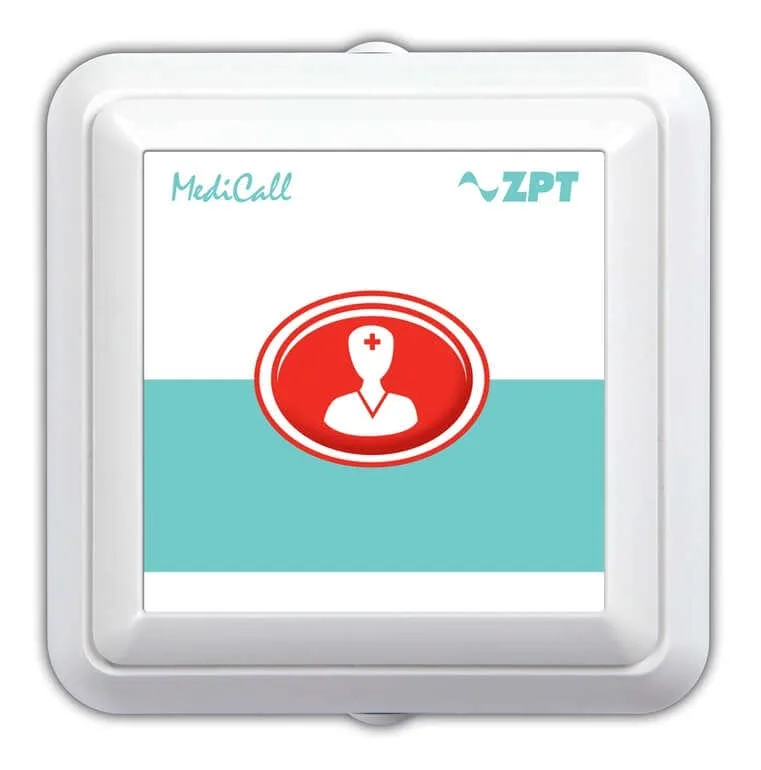

  110400

  Emergency call button IP TNV IP

  An element which, in combination with the signalling unit IP, the user holder with speaker IP or the communication unit IP, allows an emergency call to be sent to the system.

  • It is used mainly in sanitary rooms near toilets and washbasins.
  • Dimensions: 86 mm x 86 mm x 27 mm
•

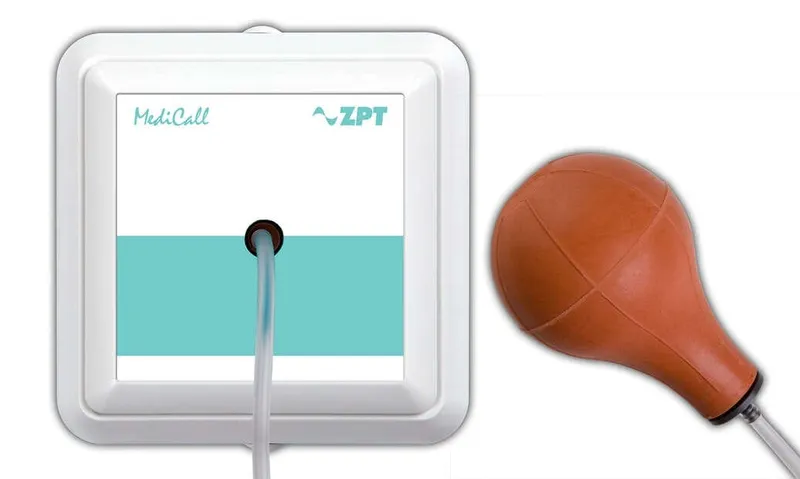

  110430

  Pneumatic switch socket IP ZPS IP

  Used to connect the pneumatic switch 110420 (an element consisting of a bulb and a hose for pneumatic actuation of a membrane switch, used in extremely humid environments or in therapeutic and rehabilitation baths).

  • In combination with the signalling unit IP, the user holder with speaker IP or the communication unit IP, it allows an emergency call to be sent to the system.
  • It is installed above or next to the bathtub, or wherever required.
  • Dimensions: 86 mm x 86 mm x 27 mm
•
  110441

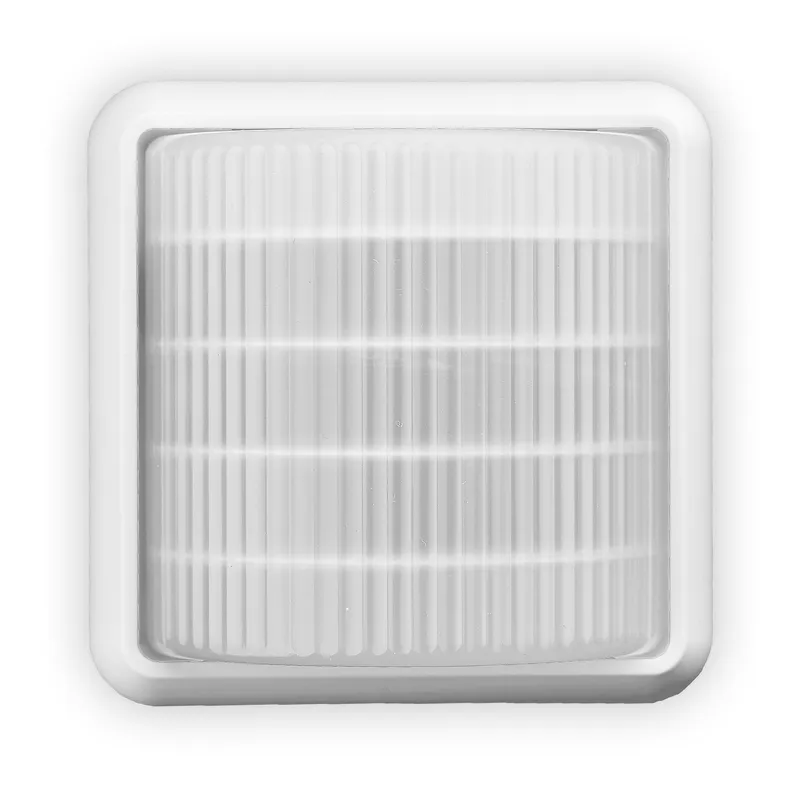

  Signal light IP SV IP

  A five-colour element which, in combination with a connected element, visually indicates the status at the given location.

  • Dimensions: 86 mm x 86 mm x 48 mm
•
  110451

  Directional signal light IP SVS IP

  Used to help staff find their way in complex buildings and areas. It visually indicates the direction from which a client call was sent.

  • Dimensions: 86 mm x 86 mm x 48 mm
•
  110540

  Information monitor interface IP IIM IP

  The element serves as the video signal source for the 32″ information monitor.

  • Dimensions: 86 mm x 150 mm x 27 mm
•
  110550

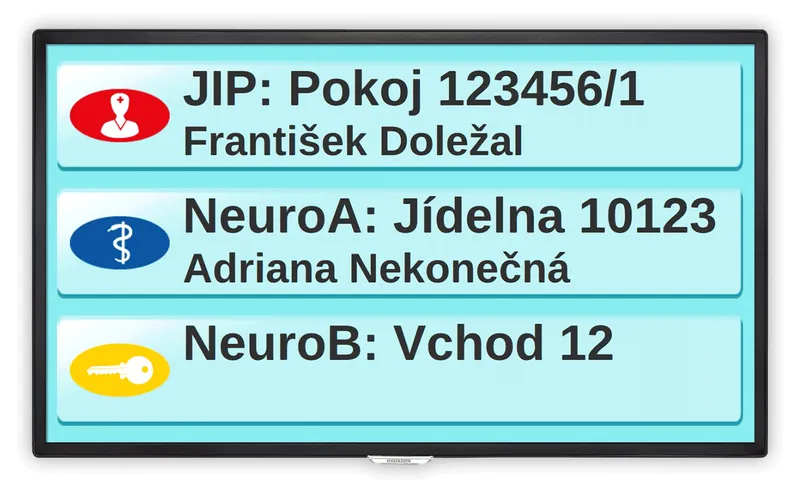

  Information monitor 32″ IM

  A 32″ information monitor, usually placed in the corridor. It shows information on individual calls – the exact address of the location where the call was activated, the call type, a description of the calling location, the name of the calling user, the medical alarm, staff presence, and the date and time.

  • Dimensions: 730 mm x 430 mm x 60 mm
•

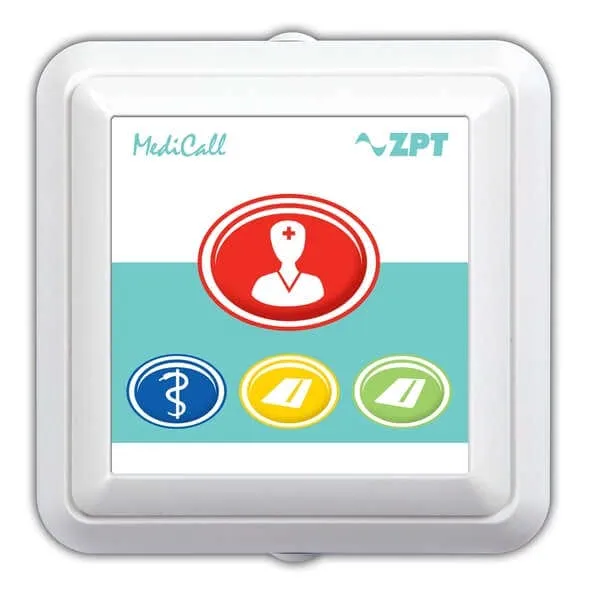

  110250

  Signalling unit IP SIJ IP

  An element used in bathrooms and toilets (if they are not part of a patient room), or in staff rest rooms, where acoustic signals from the system need to be relayed.

  • Functions of the element:
  • option to send an emergency call, option to register staff, option to send an alarm, option to connect any number of emergency call pull cords and buttons, relay of acoustic signals when staff are registered, option to communicate with wireless buttons – SIJB IP
  • option to send an emergency call
  • option to register staff
  • option to send an alarm
  • option to connect any number of emergency call pull cords and buttons
  • relay of acoustic signals when staff are registered
  • option to communicate with wireless buttons – SIJB IP
  • The SBUS input module IP (110480) connects external equipment (fire alarm systems, etc.) to the MDCV 04 IP system. It is used wherever external equipment that closes a potential-free contact needs to be connected.
  • The external device socket ZEZ IP (110481) is fully equivalent to the SBUS input module (110480) and is additionally fitted with an RJ 11 connector.
  • Dimensions: 86 mm x 86 mm x 27 mm
  • Versions: SIJ RFID IP (110250) – Signalling unit with RFID IP, SIJB IP (110251) – Wireless signalling unit 868 IP, SIJB RFID IP (110251) – Wireless signalling unit 868 with RFID IP, SIJB IP (110252) – Wireless signalling unit 869 S IP, SIJB RFID IP (110252) Wireless signalling unit 869 S with RFID IP
•

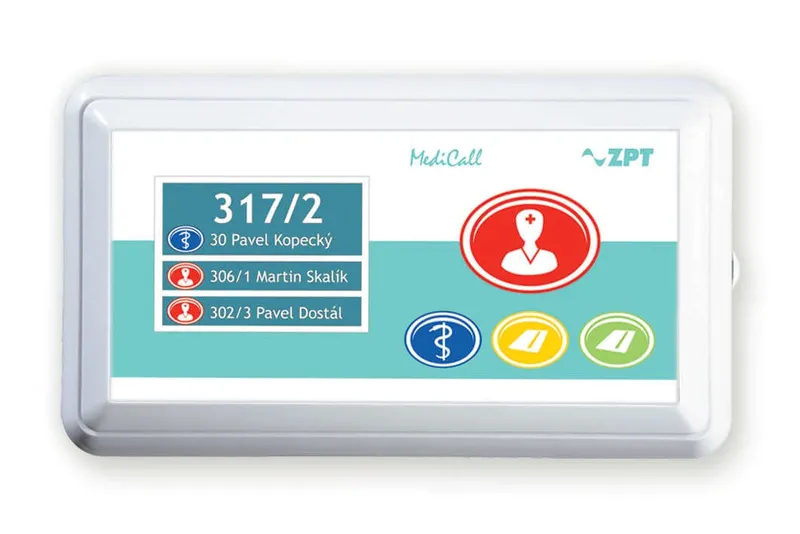

  110260

  Signalling unit with display IP SIJD IP

  Compared with the IP signalling unit, this element adds a display that shows identification details of each call – the exact address of the location where the call was activated, the call type, a description of the calling location and the name of the calling user.

  • Dimensions: 86 mm x 150 mm x 27 mm
  • Versions: SIJD RFID IP (110260) – Signalling unit with display and RFID IP, SIJDB IP (110261) – Wireless signalling unit 868 with display IP, SIJDB RFID IP (110261) – Wireless signalling unit 868 with display and RFID IP, SIJDB RFID IP (110262) – Wireless signalling unit 869 S with display and RFID IP
•
  110361

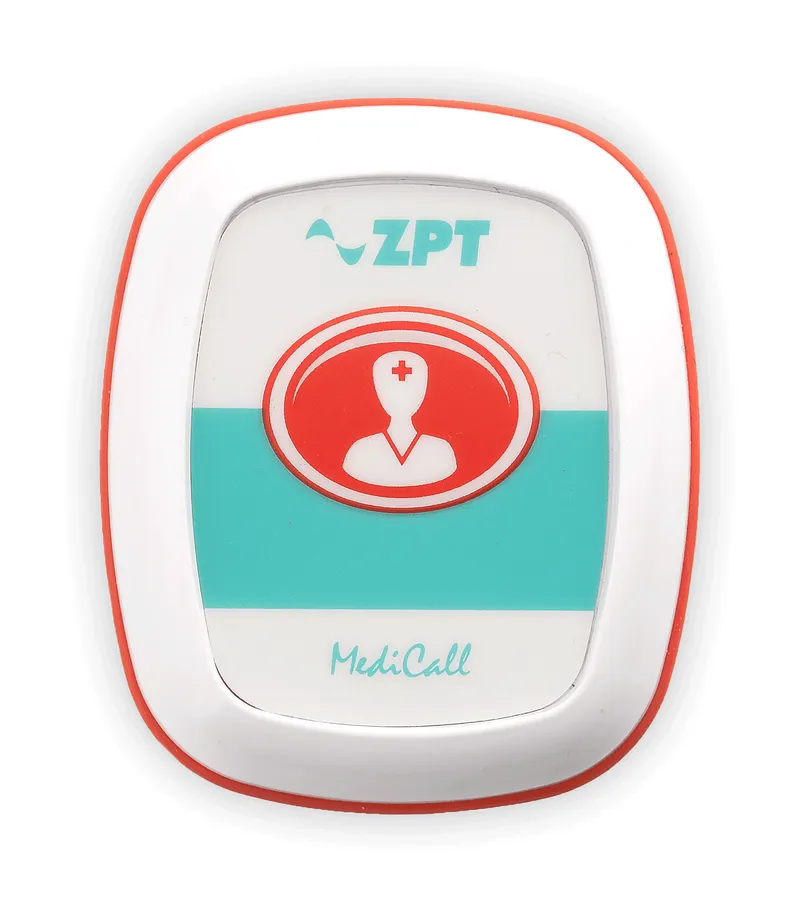

  Wireless user button 868 IP BTU IP

  The element is used to trigger an emergency call wirelessly. It is particularly suitable where the user can move freely around the room or ward but must be able to summon staff at any time (sudden indisposition, etc.).

  • Dimensions: 40 mm x 84 mm x 27 mm
  • Versions: BTU IP (110361) Wireless user button 868 IP, neck-worn, Wireless user button 868 IP with clip, BTU IP (110362) – Wireless user button 869 S IP, Wireless user button 869 S IP, neck-worn, Wireless user button 869 S IP with clip, BTUM IP (110363) – Wireless user button 869 S multi IP, Wireless user button 869 S multi IP, neck-worn, Wireless user button 869 S multi IP with clip
•
  110131

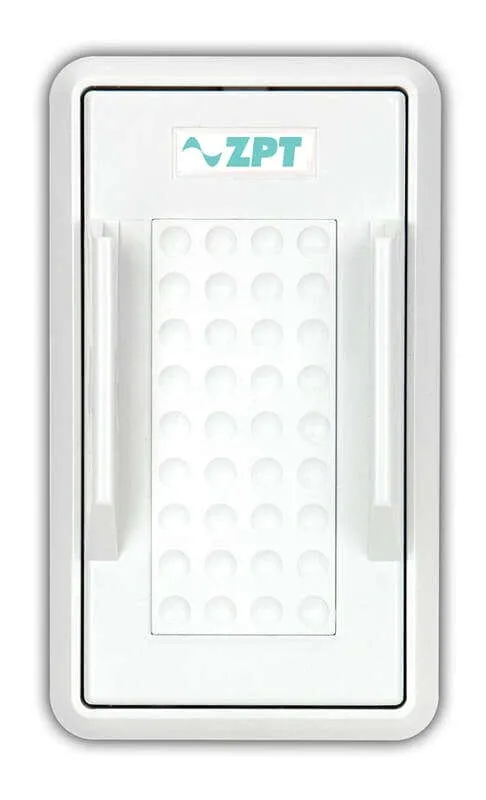

  Bed unit holder without connector IP ZLJ IP

  Used to hang the IP bed unit where the installation wiring terminates in patient bedhead units (connection to the ZU IP).

  • Dimensions: 86 mm x 150 mm x 45 mm
•
  109500

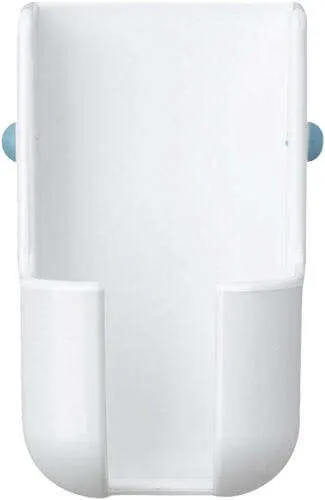

  Call cord holder for ZLJ ZVSZ

  An element used with the bed unit holder with connector IP when only a call cord, rather than a bed unit, is provided at the user's bed.

  • Dimensions: 55 mm x 95 mm x 40 mm
•
  102320

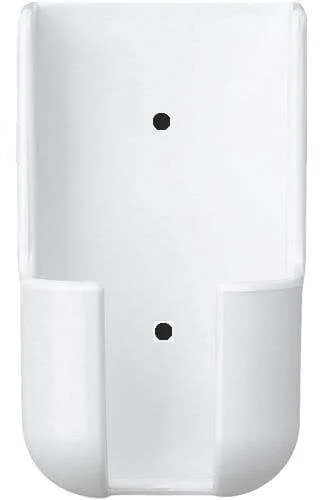

  Call cord holder ZVS

  used to hang the emergency call cord

  • Dimensions: 55 mm x 95 mm x 40 mm
•

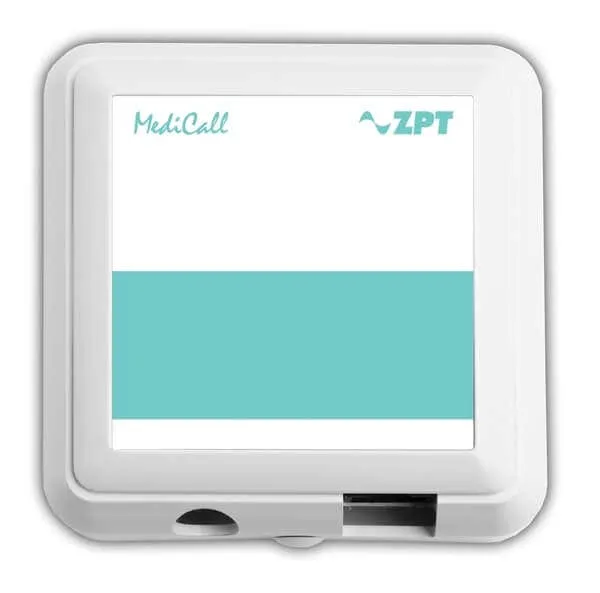

  110030

  Ethernet socket IP ZE IP

  The Ethernet socket serves as the interface for connecting the staff terminal to the system bus.

  • Dimensions: 86 mm x 86 mm x 27 mm
•
  110294

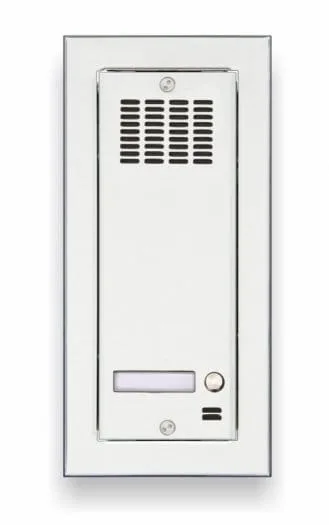

  Outdoor entrance communication unit 2 IP Acrios VKJV2 IP

  The element is used in locations exposed to the weather (building entrances) and is intended mainly for arriving visitors. It is supplied as a complete set including a metal cover.

  • Functions of the element:
  • option to send a request for a voice connection with staff
  • voice connection
  • Dimensions: 135 mm x 225 mm x 75 mm
  • Versions: VKJV4 IP (110293) Outdoor entrance communication unit 4 IP Acrios
  • The unit can be extended with the CRVKJV IP (110561) VKJV IP RFID reader for opening the electric lock (EZ) with RFID tags from the area next to the VKJV2 IP.
•

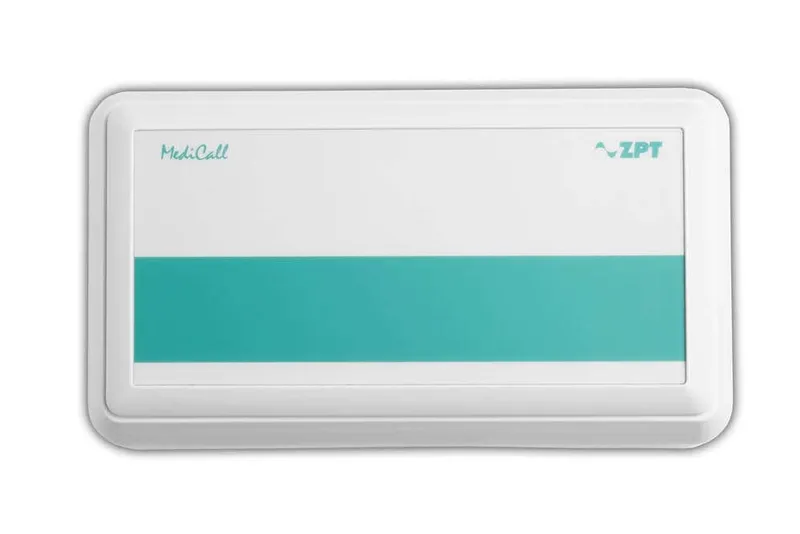

  110303

  VKJV IP Acrios adapter AVKJV IP

  An electronic element that forms a single functional unit with the outdoor entrance communication unit 2 IP Acrios. It must be installed exclusively indoors, close to that unit.

  • It has no controls.
  • Dimensions: 150 mm x 86 mm x 26 mm
•

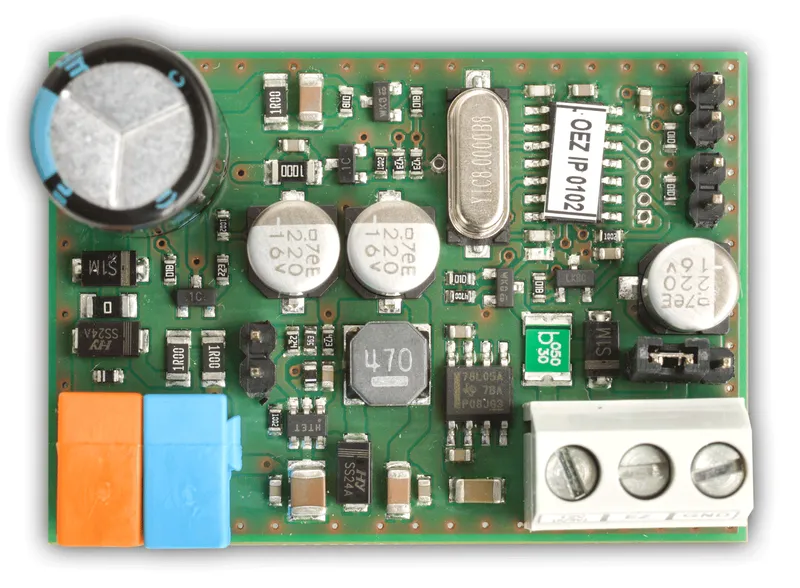

  110470

  Electric lock controller IP OEZ IP

  The element generates the voltage for operating an electric lock. It must be installed exclusively indoors.

  • Functions of the element:
  • adjustable electric lock input voltage 6 V/9 V/12 V
  • setting for the lock type used (closed/open in the idle state)
  • AC/DC setting
  • The electric lock is not included in the MediCall system delivery.
  • Dimensions: 50 mm x 30 mm
  • RFID reader IP – CRFID IP (110560) for operating the electric lock with an RFID tag.
•

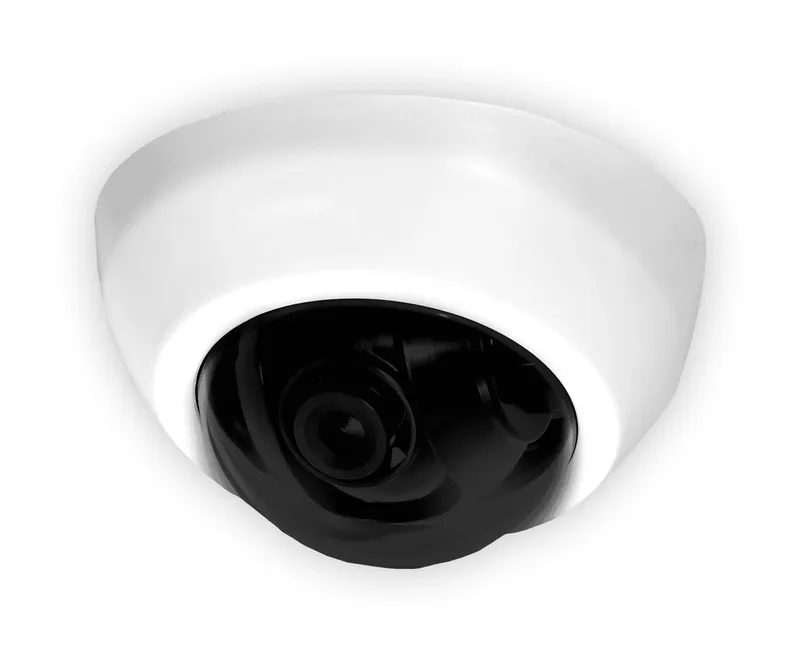

  110650

  Indoor camera set IP SK IN IP

  Transmits images from the required location to the staff terminal IP – for example from the ward or building entrance door, usually in combination with the entrance communication unit IP.

  • Dimensions: depending on the selected type
  • Versions: SK OUT IP (110651) – Outdoor camera set IP, SK D IP (110652) – Indoor camera set with detection IP
•

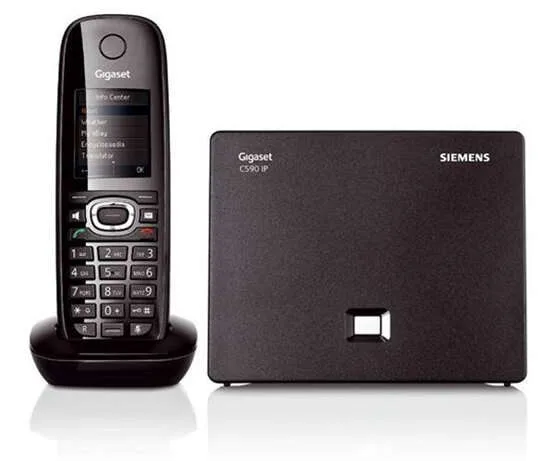

  110600

  Wireless duty unit IP BSJ IP

  The wireless duty unit consists of a base and a handset.

  • The base is the part of the set that provides basic communication with the cordless handset, network communication over the LAN with the router (switch) and telephone calls via the public telephone network. The range of the base station is limited, up to 50 m inside buildings; the range is reduced when ECO mode is switched on. The device is always powered from the MediCall system backbone line via a power stabiliser, which is included in the set.
  • The handset is the receiving device that provides the voice connection with the base and comes with a charger. The wireless duty unit is a standard cordless telephone connected to the system via the base. It can be used in staff duty rooms or at the workstation where the staff terminal is located. The element allows staff to move around within the range of the cordless telephone while remaining immediately available to provide care and assistance.
  • With the BSJ IP repeater (110601) you can extend the range of your Gigaset base station and cover areas where reception from the base station was originally not possible. In this extended coverage area you can use all functions of the handset just as you are used to near the base station.
  • Functions of the element:
  • available in a nurse or doctor version
  • option to connect to several independent systems
  • separate registration for each system
  • option to send requests for a voice connection to the individual systems
  • alarm reception from the individual systems with the option to establish a voice connection
  • option of a voice connection with all communication elements of the system or of systems in joint operation
  • option of simultaneous direct connection to the public telephone network
•

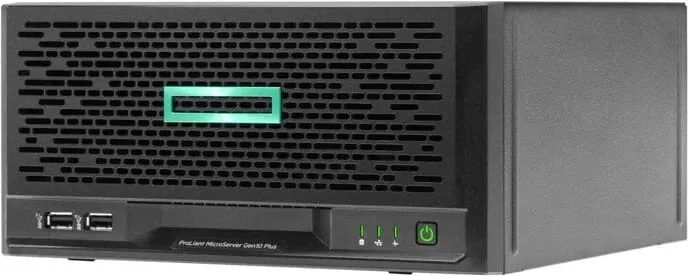

  110041

  VoIP system server Acrios SSV IP

  The central element used to control and manage the entire system.

  • Dimensions: 119 mm x 245 mm x 245 mm
  • The server is supplied with an 8-port Ethernet switch SW8 IP (110660) for connecting the individual branches of the system wiring.
  • The backup power supply for SSV – ZZ (110690) keeps the server powered in the event of an unexpected power failure and also protects it against overvoltage.
  • Data cabinet DR6 (110790) for housing the SSV IP server and the switch (the data switch is supplied with the system server), 6U size with removable side panels, IP30 certified.
  • Analogue VoIP gateway IP – AVB IP (110810), connecting the system to public telephone networks.
  • The GSM SMS gateway IP Acrios – GSM SMS IP (110852) connects the MDCV04IP system to the GSM network.
  • Detection gate module IP – MDB IP (110861) for monitoring persons who leave a given section or building without authorisation. AMDB IP (110862) Detection gate module antenna IP.
  • Paging exchange – PU (110670), Text pager – PT (110680), Paging control console IP – OPP IP (110675) – elements that allow signals to be transmitted from the MediCall system. The information is transmitted in text form to the client's text pager.
•

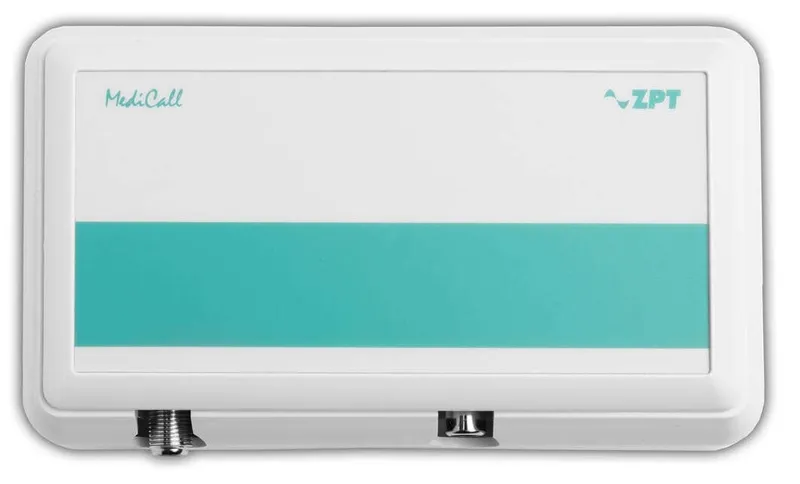

  110520

  Audio programme module IP MAP IP

  The element serves as the source of the entertainment programme (2 FM channels) distributed to the system.

  • Dimensions: 220 mm x 140 mm x 41 mm
•

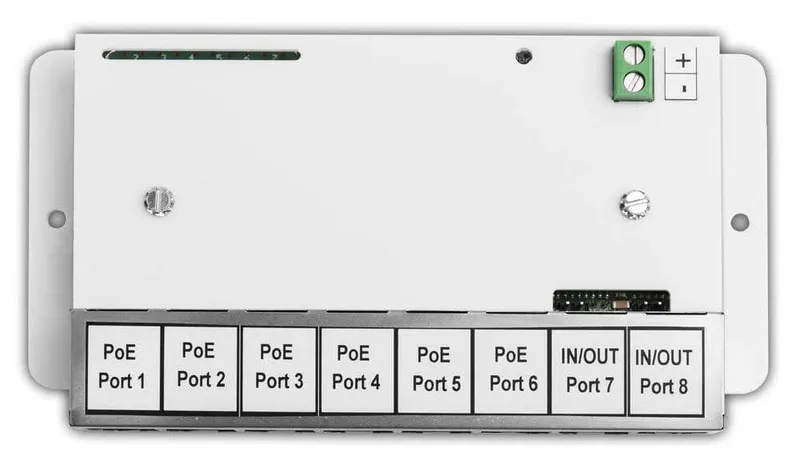

  110640

  Switch module ZPT IP SM IP

  An installation element used to build the system's Ethernet network.

  • Dimensions: 110 mm x 85 mm x 15 mm
•
  110091

  Power supply 350 W 24 V IP N350 IP

  A stand-alone unit connected on the input side to the mains and on the output side to the supply line. Mains supply requirements – 1+N+PE 230V/50Hz. The mains supply lines must be protected by a separate 6A circuit breaker. Maximum power input 100VA.

  • Dimensions: 305 mm x 200 mm x 95 mm
